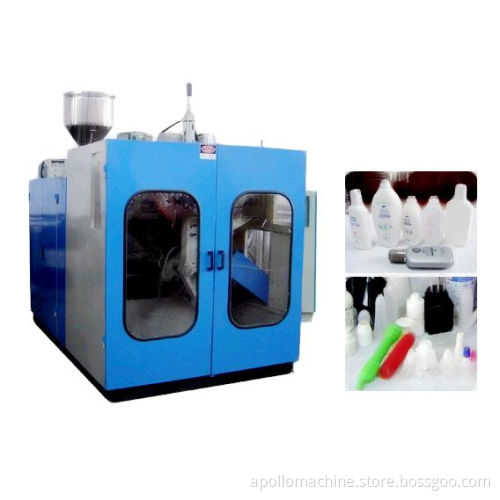

Full-Auto Plastic Bottle Moulding Machine

Get Latest Price

Payment Type:: L/C, T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Zhangjiagang City, Jiangsu Province, China
Payment Type:	L/C, T/T

Product Description

ABLB45 Full-auto plastic bottle moulding machine was specially designed for making plastic water bottles, medical bottles, oil bottles, plastic balls, suction tubes and other small plastic containers not over 2L.

Max volume 2L bottle
Adopt Japan&Taiwan technology
Perfect after-sale service
Competitive pric

electronic parts
Name	Trader
Micro computer control system	Japanese MITSUBISHI
Temperature Controller	TAIWAN YANHUA PID
Auxiliary Relay	OMRON
contactor	Schneider from France
Electric motor	Three phase 220V or 380V
Power Source	TAIWAN MEANWELL
Transducer	TAIDA FROM CHINA
hydraulic parts
Name	Trader
Oil pump	TAIWAN HIGH-TECH
Valve	JAPAN YUKEN
Oil pump and connection	JAPAN YUKEN
Sealed part	HALLITE
air control system
Name	Trader
Cylinder	AIRTAC
Air Valve	FESTO

Technical Parameters: ( ABLB45 )

Max. Product volume	2L
Out put capacity	500~600pcs/h
Screw diameter	45mm
Screw L/D ratio	24:1 L/D
Screw drive power	10 KW
Screw heating capacity	2.6 KW
No.of heating zone	3 zones
Output of HDPE	35 KG/H
Oil pump drive power	4.8 KW
Clamping force	32KN
Max.size of mold	80-350mm
Mold stroke	250 X 320mm
Max.die diameter	80mm
Blowing pressure	0.6 mpa
Air Volume	0.4M³/MIN
Cooling water pressure	0.3mpa
Water consumption	30 L/MIN
Size of Machine	2.6x1.4x2.2m
Weight of machine	2.8 ton
