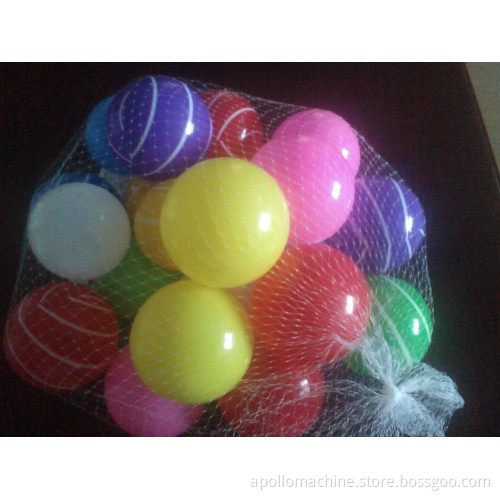

LDPE Plastic Sea Ball Blow Molding Machine (18cm diameter)

Get Latest Price

Payment Type:: L/C

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	L/C

Product Description

Die head: Center-feed die head
Extrusion system: Adopt world-famous brand automatic temperature controlling device. Drive the screw with electromagnetism motor reducer to realize stepless regulating.
Clamping device: Adopt bi-directional synchronous clamping device with double axis single cylinder to stabilize equipment well
Blowing device: with upper blowing type
Hydraulic system: The whole hydraulic system adopts world-famous brand controlling components and proportional controlling circle.
Electric controlling system: Adopt programmable controller made in Mitisubishi, Japan. Every electric component is of world-famous brand.

Max. Product volume	4 liters
Screw diameter	65mm
Screw L/D ratio	24 L/D
Screw drive power	18.5 KW
Screw heating capacity	6 KW
No.of heating zone	3 zones
Output of HDPE	80KG/H
Oil pump drive power	7.5 KW
Clamping force	45KN
Max.size of mold	80-350mm
Mold stroke	320 X 360mm
Max.die diameter	140mm
Blowing pressure	0.6 mpa
Air Volume	0.6 M³/MIN
Cooling water pressure	0.3mpa
Water consumption	65 L/MIN
Size of Machine	2.95x2x2.7m
Weight of machine	4.7ton
