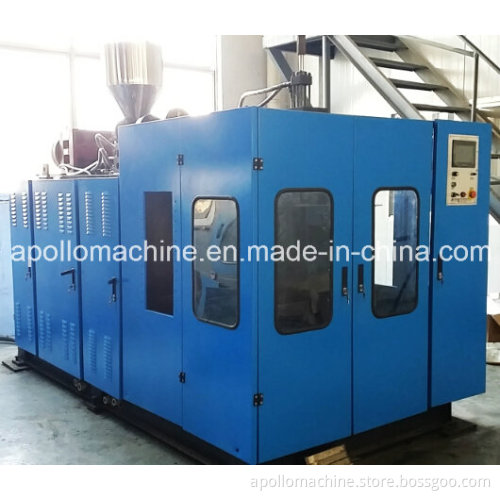

400ml 750ml 1L Shampoo Detergent Bottles Automatic Blow Molding Machine

400ml 750ml 1L Shampoo Detergent Bottles Automatic Blow Molding Machine

Get Latest Price

Payment Type:: L/C, T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	JiangSu
Payment Type:	L/C, T/T

Product Description

Full-automatic extrusion blow moulding machine:
Automatic blow molding machine for making HDPE or PP detergents bottles,shampoo,liquid soap
cosmetical,household package,jars,jerry cans up to 2L.

The features of this machine:

(1)It is suitable for producing PP, PE, PVC and plastic containers and bottles in all shapes, the max. Product volume is up to 2L.
(2)It is mainly designed for small plastic products and plastic tube, especially for plastic suction tube.
(3)Feeding system carries performance automatically through a suction feeder. It can save the labor cost for you. One worker can look after 5 sets at the same time.
(4)Fully automatic process with low investment, high efficiency, quick and safe operation, easy for trouble-shooting and maintenance.

Technical Parameters: ( ABLB45 )

Basic parametersSuitable materialPE.PP,PVC,PS,PETG,so on

Max volume1000mL

Output capacity360~400 pcs/h

Size2.8×1.9×2.3(M)

Weight3.8T

systemSpecificationParametersNote

Plasticizion systemSummarizeHigh efficient low power consumption plasticizion system, transducer control,self-protect function when started at low temperature

ReducerHard finishing,High intension,Low noise reducer

Screw45mm,L/D ratio 24, 38CrMoALA Cooling system available

Plasticization60Kg/HHDPE

Heating Zone3-4 Aluminum HeaterAutomatic heating

Heating power5KW/H

Extrusion MotorThree phase asynchronous motor (380V,50HZ)

Cooling Fan3-4zone Automatic cooling

Extrusion systemSummarizeHigh-grade alloy steel, center feeding

Die head number1

Center distance of die heads/

Max die mouth80mm

Heating zone3-4 Stainless steel heating cycle

Heating power2~4KW

Clamping systemSummarize
High intension, rigidity, center mold locking, stable mould opening and clamping system

Clamping force32KN

Template distance90~400mm

Max mould size290X350mm

Mould materialHigh grade 50# steel

Electric systemSummarize
PLC+ touch screen(man-machine interface)standard extrusion blow molding machine controlling system(AUTO monitoring, fault-alarm, auto counting ,auxiliary function available)
Japanese Mitsubishi PLC
system

Operate interfaceTouch screen, automatic self-diagnose alarm system

Temperature controlAutomatic temperature control module

Movement controlJapanese Mitsubishi, Chinese/English
Version

Electric protectionAmpere overload, electric short circuit self-protection function

Hydraulic systemSummarizeMultiple function hydraulic integrated block Proportional control, high efficient

Oil pump motorThree phase asynchronous motor (220V,60HZ)

Oil pumpImported double pump 5.5kw

ValvesImported oil pump valves and connections

Oil pipesDouble layer overpressure resistant

System pressure60Kg/cm²

Cooling systemSeparate water cooling cycle, oil cooler cooling system

Pneumatic systemSummarizeTaiwan AIRTAC pneumatic system
