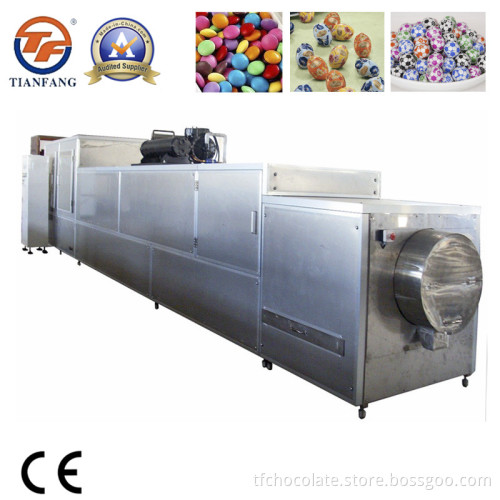

Chocolate Ball Forming Machine (TQCJ600)

Chocolate Ball Forming Machine (TQCJ600)

Get Latest Price

Payment Type:: L/C, T/T, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Suzhou, Jiangsu, China
Payment Type:	L/C, T/T, Western Union

Product Description

Use:
Chocolate Bean Forming Machine is used for producing chocolate beans in various shapes by the technology of cold rolling. The shapes of chocolate bean include chocolate ball, chocolate egg, chocolate lentil (like M&M), chocolate heart etc.
It includes cold rollers, convery system, cooling system, separator etc.

Cold rollers:

Machine with two sets of cold rollers---It can be used to make two shapes on one machine

Finished machine:

Model	TQCJ400	TQCJ600
Capacity (kg/h )	200	300
Total Power (kw)	25	25
Dimension (mm)	8620×1040×1840	862012401840
Net Weight (kg)	2400	2600
Diension of Rollers (mm)	414(diameter)*400(length)	414(diameter)*600(length)
Rotation Rate of Rollers ( r/min )	0.3~3 (speed adjustable)
Length of Cooling Tunnel (m)	7.4*3 layers
Width of PU Belt (mm)	600	800
Cooling Compressor	8HP and 10HP(COPELAND)
Temperature of Cooling Tunnel	0~5
