PP PE Recycling Plant

We specialize in product plastic recycling line for nearly 10 years. As an experienced factory we have over 250 workers and 40 engineers. Till now, we have exported to more than 30 countries. With CE certifications. With the better after sale service, we are always give our customer the best production line.

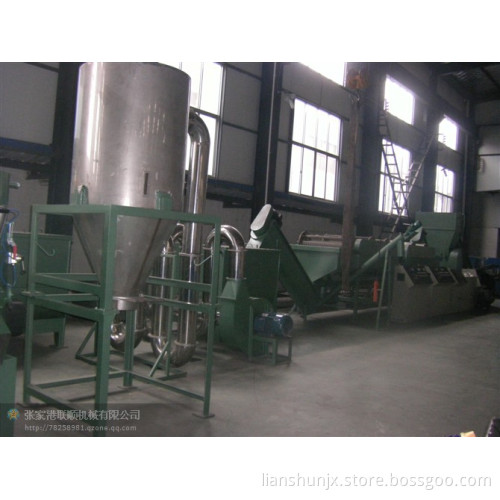

This line consist of plastic select device, crusher, washer, separate, dryer and packing. This is the whole complet line on our project.

Consideration for our customer we will design different line for our customer:
1: We provide different capacity for our customer: 200kg/h, 300kg/h, 500kg/h, 1000kg/h.
2: According to your material, you may choose different devices.
3: According to your country condition, you may choose full automatic line or semi-automatic line.
4: Our customer may purchase separate device based on his own conditions.
5: We providing turn-key project for our customer. Design-product-installment-testing.
6: Based on your workshop condition, Our design always matched to your workshop mostly.

We sincerely wish our new products will bring win-win for both of our customer and us.
WASTE  PE, PP  FILM  CRUSHINGWASHING  LINE(OUTPUT: 800/hr)
  component  items POWE(kw)   L*W*H(mm)   WEIGHT
  (kg)
QTY
1 Belt  conveyor 1.5 6000*680*600(3200)   550   2
2 PS-700  Crusher  with  water 37 1650*1400*2800(2800+920) 1500
component  items POWER(kw)   L*W*H  (mm) WEIGHT
  (kg)
QTY
3 Screw  Loader  1(600) 15 3500*800*1300 780 1
4 Single  Screw  friction  washing  18.5+0.75 5300*1300*2150 2300 1
5 Screw  Loader  2(600) 15 3500*800*1300 780 1
6 Floating  Tank 3+1.1+1.5 6000*1200*2150 2500 1
7 Screw  Loader  3(500)  7.5 3500*800*1300 680 2
8 Horizontal  dryer  30 2300*1750*1900 2200 2
9 Silo    1500*900*3400 130 2
10 electrical  control  system    1000*500*2000 720 1
1000*550*1150 120 2
1. length  of  production  line.
2. installedpower: 209kw.
3. equipment  noise: 1  meter≤ 80dB,   5    meters≤ 75dB.
4. water  consumption  for  recyling  1T  waste  material:   (circulating  water)
5. oil  burning  boiler  steam  volume:   300kg/h,   steam  pressure0.7Mpa.
team  temperature,   average  oil  consumption  per  hour: 15
WASTE  PE. PP  FILM  CRUSHING  WASHING  LINE(OUTPUT: 500/hr)
  component  items POWE(kw)   L*W*H(mm)   WEIGHT
  (kg)
QTY
1 Belt  conveyor 1.5 6000*900*600(3200)   600   1
2 PS-1000  Crusher  with  water 45 1650*1660*2800(2800+920) 1700
component  items POWER(kw)   L*W*H(mm) WEIGHT
  (kg)
QTY
3 Screw  Loader  1(500) 11 3500*800*1300 700 1
4 Single  Screw  friction  washing  11+0.75 5300*1300*2150 2200 1
5 Screw  Loader  2(500) 11 3500*800*1300 700 1
6 Floating  Tank 2.2+1.1+1.5 6000*1200*2150 2300 1
7 Screw  Loader  3(500)  11 3500*800*1300 700 1
8 Horizontal  dryer  30 2300*1750*1900 2200 1
9 Silo    1500*900*3400 130 1
10 electrical  control  system    800*500*2000 520 1
1000*550*1150 120 1
1.   length  of  production  line.
2.   installed  power: 128kw.
3.   equipment  noise: 1  meter≤ 80dB,   5    meters≤ 75dB.
4.   water  consumption  for  recyling  1T  waste  material: (circulating  water).
5.   oil  burning  boiler  steam  volume:   300kg/h,   steam  pressure0.7Mpa
vapor  temperature,   average  oil  consumption  per  hour: 15.
