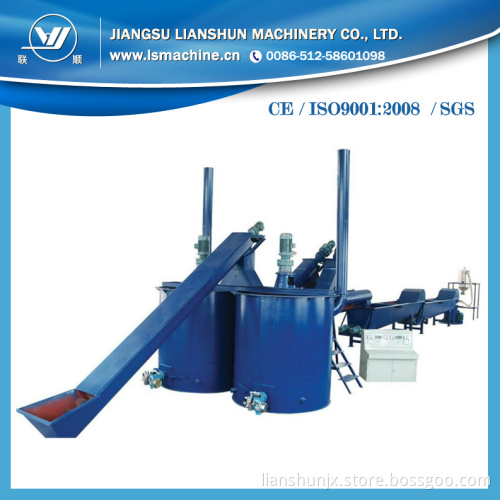

SIEMENS Control system Pet Bottle Recycling Machine
1. The Process Flowchart:
Belt Conveyor----> Label Remover--->Manual Detecting and Sorting --->Belt Conveyor----> Wet Crusher--->Screw Loader--->Hot-Washing --->Friction Washer--->Screw Loader---> Floating Washer--->Floating Washer--->Spraying Washer--->Screw Loader---> Centrifugal Dewatering Machine---> Pipeline Dryer---> Label Separator--->Storage Silo--->Packing

1. Main Characteristic of the line:
(1)Super crushing capability, stable working performance
(2)Special alloy blade, endurable
(3)Automatic magnetic iron-reducing device
(4)Special design for high-speed friction washing
(5)Special air separation device to reduce dust and label rapidly
(6)Adopt stainless steel in places that contact with water
(7)Automatic cleaning equipment controlled by PLC
(8)PDry crusher roduct after cleaning reaches at top grade quality requirements
(9)Multiple choices according to requirements

Characteristic:
1. High automation level, try best to reduce your cost on labor (especially for three shifts) and ensure high processing capacity: 500-2000kg/hr
2. Friendly control system (PLC integrated & separated control on each machine) and Touch screen panel, easy for operation, monitor and emergency stop.
3. All parts contacting with plastic material and water are made of high-quality 304 stainless steel; Ensure no second pollution to flakes.
4. Ideal impurity removal effect. Here is from our customer's feedback.
1. Moisture: Max. 1-2%
2. Bulk density: 0.3G/CM3
3. Total impurity: 320ppm
A-PVC content: 100ppm
B-Metal content: 20ppm
C-PE/PP content: 200ppm
4. Particle size: 14-16mm
Siemens Control System Pet Bottle Recycling Machine

Input capacity	500kg/h	1000 kg/h	2000 kg/h
Workshop(MMM)	42 (L)×10(W)×6(H)	55(L)×15(W)×6(H)	70(L)×18(W)×6(H)
Ancillary staff	6Persons	8 Persons	12 Persons
Installation power	156KW	307KW	420KW
Water Consumption:	2Ton/h	3.5Ton/h	5 Ton/h
Final product	Moisture: max 1% Bulk density: 0.3G/CM3 Particle size: 14-18mm Metal content: max.20ppm Floatable contamination: less than 200ppm Total impurity: 320ppm	Moisture: max 1% Bulk density: 0.3G/CM3 Particle size: 14-18mm Metal content: max. 20oom Floatable contamination: less than 200ppm Total impurity: 320ppm	Moisture: max 1% Bulk density: 0.3G/CM3 Particle size: 14-18mm Metal content: Max. 20ppm Floatable contamination: less than 200ppm Total impurity: 320ppm
