CE/ISO/SGS Certification High Density Polyethylene Pipe Making Machine

Get Latest Price

Payment Type:: L/C, T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	L/C, T/T

Product Description

CE/ISO/SGS Certification High Density Polyethylene Pipe making machine
1. Certification: ISO9001: 2000 CE
2. Application: Water supply or gas transmitting PE Pipe

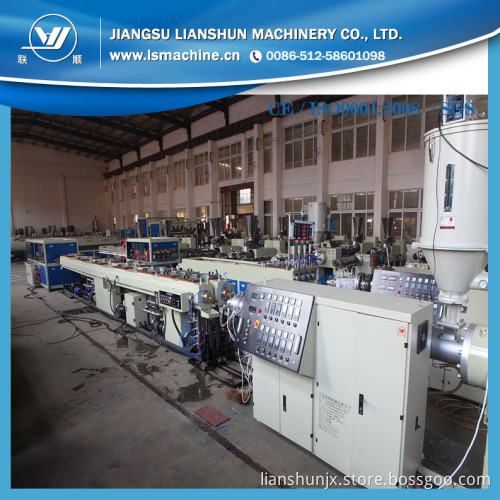

PE Pipe extrusion machine
This production line is mainly used to produce water supply or gas transmitting PE Pipe
Feature:
1. Single screw extruder, very suitable to process PE resin with high capacity, max capacity 1000kg/h
2. The production line adopts reasonable design, absorbing safe producing technology, acquiring CE certificate.
3. Diameter range is 16mm-800mm, which can be changed into inch standard to meet client's special requirement. CE/ISO/SGS Certification High Density Polyethylene Pipe Making Machine

Pipe range	16 -63mm	20 -110mm	75 -160mm	90 -250mm	110 -315mm	160 -450mm	315 -630mm	500 -800mm
Extruder size	¢ 45mm	¢ 60mm	¢ 75mm	¢ 75mm	¢ 90mm	¢ 90mm	¢ 120mm	¢ 150mm
Motor power	AC30kw	DC75kw	DC110kw	DC110kw	DC160kw	DC160kw	DC280kw	DC335kw
Capacity	60 -100kg/h	100 -150kg/h	250 -300kg/h	250 -300kg/h	350 -400kg/h	350 -400kg/h	650 -700kg/h	850 -900kg/h
Lineal speed	10m /min	6m /min	6 m /min	6 m /min	3 m /min	1.2m /min	0.9m /min	0.7m /min
