CE/SGS/ISO9001 Conical Twin Screw Extruder (LS 003)

Get Latest Price

Payment Type:: L/C, T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	L/C, T/T

Product Description

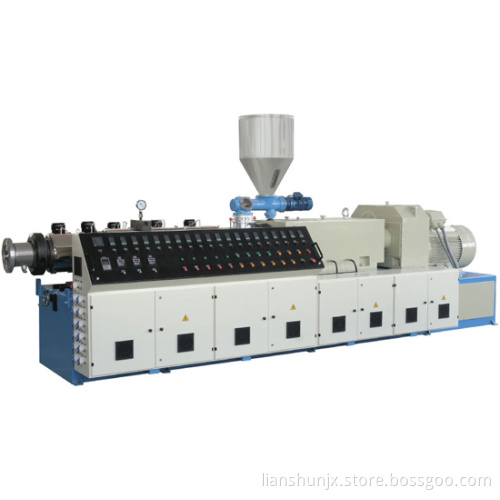

SJSZ series conical twin-screw extruder has advantages such as forced extruding, high quality, wide suitable range, long working life, small sharing speed, not easy to decompose of material, good plasticized character, and straight shaping of powder material and etc.

This extruder is equipped with AC motor, auto temperature controller, vacuum exhausting device and other devices. This line is suitable for production of pipe, plate, profile and etc.

Items	mode	SJZ51	SJZ65	SJZ80	SJZ92
Diameter of screws(mm)		51/105	65/132	80/156	92/188
Quantity of screws		2	2	2	2
Direction of screws		Opposition and outward
Speed of screws(r/min)		1-32	1-34.7	1-36.9	1-32.9
Effective length of screws (mm)		1070	1440	1800	2500
Main motor power(KW)		18.5	37	55	110
Total power(KW)		40	67	90	140
Capacity (kg/h)		120	250	360	800
Centre height(mm)		1000	1000	1000	1100
