CE/SGS/ISO9001 Single Screw Extruder

Get Latest Price

Payment Type:: L/C, T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	L/C, T/T

Product Description

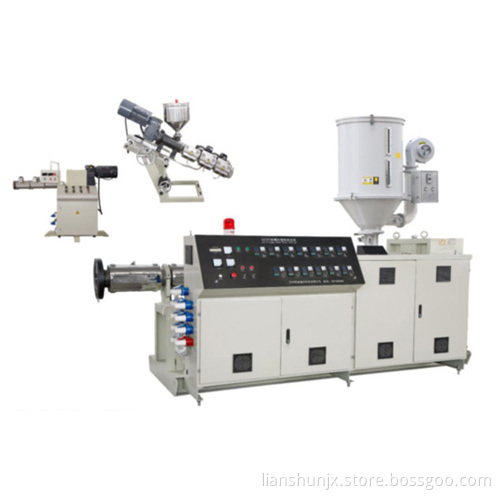

This unit is mainly used in extruding soft and hard PVC, PE and other thermoplastic plastics. It can process all kinds of plastic products with auxiliary machinery concerned, such as film, pipe, bar, plate, thread, ribbon, insulating layer of cable, hollow products and so on. It is also used in graining.

This machine's design is advanced. Its capacity is high. Its plasticization is good, and its energy consumption is low. It adopts hard tooth face of gear for transmission. It has advantages of low noise, smooth operation, large loading, and long use-lift and so on.

Model	L/D	Drive power(KW)	Screw speed (r/min)	Output(kg/h)	Center height (mm)
SJ-25	25/1	2.2	20-120	5	1000
SJ-30	25/1	5.5	20-180	10	1000
SJ-45	25-33/1	7.5-22	20-150	50-150	1000
SJ-65	25-33/1	22-90	20-150	60-250	1000
SJ-75	25-33/1	55-110	20-150	200-350	1100
SJ-90	25-33/1	37-185	20-110	180-550	1000-1100
SJ-120	25-33/1	75-280	20-90	320-800	1000-1250
SJ-150	25-33/1	90-355	20-75	400-1200	1000-1300
