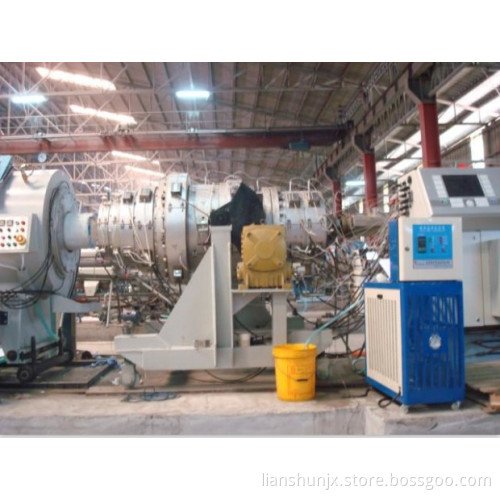

Pepipe Production Line 12mm-1200mm

PEpipe production line 12mm-1200mm


General Description
L Application Material: PE
L Pipe Range Size: Φ 630 mm
L Operation Direction: From Right to Left
L Center height of production line: 1650 mm
L Equipment color: White
L Recycled cooling water usage: 30 m3/h Volume: 50 m3
L Compressed air: 2.5 m3/min
L Power equipment: 380V ± 10% 50Hz
L Whole motor power: 660 Kw
L Overall dimension of production line: 60000× 2800× 2600 mm
L Control of production line:
Operating system:
Using Siemens human-computer interface, LCD, S7-200 programmable microcomputer control system, each operate parameter can be defined freely and shown on screen. Revolution, hauling speed and temperature can be installed and modified.
DC governor system: Eurothem digit DC governor
Frequency governor system: Mitsubishi converter
Low-voltage apparatus:
Button, switch Schneider
Contactor Schneider
Temperature control RKC
Heat circle stainless steel ceramic heater
