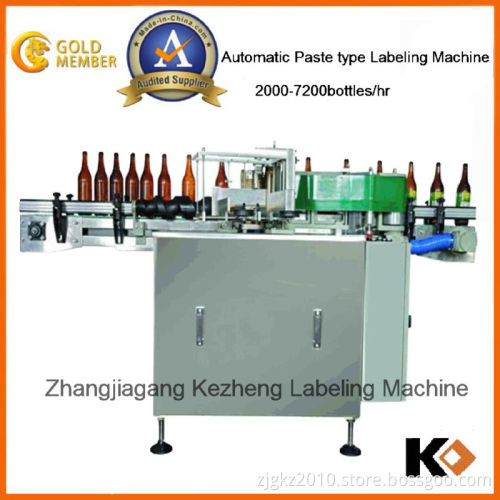

Automatic Paper Label Paste Type Labeling Machine

Labeling speed up to 2000-7200B/H
Stepless speed adjusting control
Automatic paper paste type labeling machine

This automatic paper paste type labeling machine is suitable for cylindrical container such as glass, plastic, PET bottle with paper label. The machine is economical and easy to operate. The performance is stable with a level off and good looking labeling result. The control system adopts convert motor system, the step of conveying bottle, supplying glue and sticking label automatically. This automatic labeling system is ideal for food & beverage, medical industry etc.

Key Features:
L Labeling speed up to 2000-7200Bottle/Hour
L Simple Straight Forward Operator Controls
L Open Frame design, easy to adjust and change the label
L Variable Speed with no grade motor
L Label Count Down (for precise run of set number of labels) to Auto Shut Off

Specifications:
L Labeling Speed: 7200 bottles/hours (according to the specification, shape of bottle and length of label)
L Bottles size: Φ 45~110 mm, height (can be customized based on the requirements)
L Size of label: Length 110mm~370 mm Width 20 mm~200 mm
L Compressive air: 0.4Mpa
L Dimensions: 2400mm× 820mm× 1000 mm ( Length × Width × Height )
L Weight: 500kg
L Electrical Requirements: _Power: 750W, Voltage: 220V, Frequency: 50-60Hz(Optional)
L Working direction: Left to Right (or Right to Left)
