Red Wine Bottle Washer

ZXP-150 glass bottle rinsing machine
1. Production Capacity: 2000-14000BPH
2. Bottle shape(round shape)
3. Height: 180-290mm

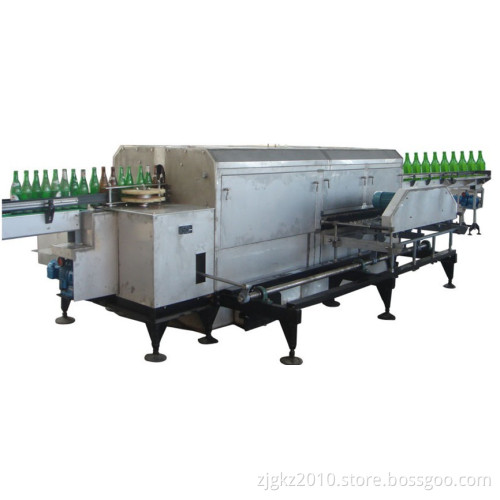

ZXP-150 glass bottle washing machine

Main features
This machine is mainly used to wash glass bottles with paper labels just like recycling beer bottles, infusion glass bottles and etc. This group machines can be matched with filling line and realize the whole line automatically.

Working principle
This machine is composed of soaking bottle machine, outside washer, inside washer, conveyor and electrical control box and etc.

Features

ZXP-150 type of automatic bottle washer is formed by steeper, outside brush machine, inside brush machine, bottle conveyer and so on:

Due to the outside bruch is field fixer, the outside brush as adapting.

Enter------steep and flush-----outside brush-----inside brush-----flush cleaning water into
Bottle------dry-----out
(the temperature of hot containing soda: 50-55° C, the concentration of containing soda is About 2.5%)

The primary structure and tracert of steeper
The main parts of steeper is rotation gear, control gear, roller, soak pool and so on
A. Rotation gear
Having two ways after power motor reduce the speed: One is intermittert motion mechanism
Put roller to motion by fits and starts. The other is two bevel gear wheels cause control gear
To revolve
