Rh-300 Open-Width Knitted Fabric Singeing Machine

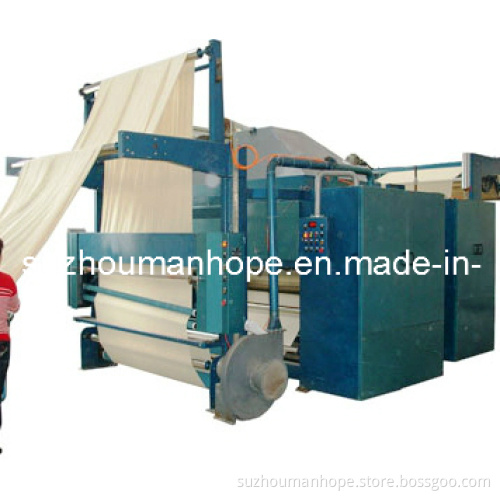

RH-300 Open-Width Knitted Fabric Singeing Machine

Specifications

Open-width Knitted Fabric Singeing Machine
Compact structure
Good quality and easy operation

Product Introduction:
The requirement on the grades of knitted fabrics becomes higher and higher. The singeing process of knitted fabrics is very important. Especially for the recently popular elastic cloth racking process, if singeing is added, the cost will be greatly reduced and the strength and cloth surface effects will be improved.
This product adopts the features of similar products and uses MJA burner. The burner nozzles are exquisitely made, and a circulating cooling tube is equipped at the burner to keep it working for a long time and ensure the evenness of the fire. The service life can reach as long as five years, and the power consumption is reduced by 50%, which greatly lowers the manufacturing cost.
Features:
1. Compact structure, and the distance between the rollers is small.
2. All the rollers except the transition rollers are dynamic rollers with decreases the tension and avoid corrugation.
3. PLC control and frequency conversion speed regulation ensures a stable synchronism and avoids corrugation.
4. The machine frames and rollers have high mechanical strength, together with small fit tolerance and stable transmission to avoid corrugation.
5. Multiple S type transmission and thread separation avoid corrugation and peeling and ensure even singeing.

Technical Parameters:
1. Vehicle distinction: Left, right
2. Width: 2, 200mm
3. Thermal source: Gasoline, natural gas and oil gas
4. Power consumption: Take gasoline and 2, 200 mm width machine as an example: 10L /h
5. Speed: 40 to 100 m/min
6. Environment protection: Equipped with dust removal device; Up-to-standard, no pollution and low noise
7. Ways of singeing: Counter-singeing, cutting and singeing
8. Span adjustment: 570 cooling cylinder adjustable.
9. Break point treatment: The burner turns to other direction automatically
10. Forms of cooling: Steam, water
11. Singeing level,: Above level 4
