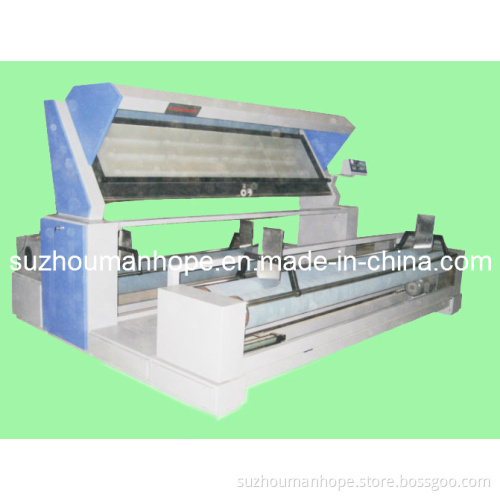

Large Package Fabric Inspecting/Winding Machine (TC-B)

TC-B Large Package Cloth Inspecting/Winding Machine


Application:
Used in garment factory, man-made fur mill, artifical leather factory. It's allows feed the fabrics in circular/roller or folded/plat form. This machine is especially good for inspecting and rolling the export fabrics.

Technical Features:
1. Applies an operator platform making the inspecting table close to the eyesight in order to the facilitate the cloth amendment and the sorting of defective points
2. Photoelectronic device for automatic edge-alignment
3. Frequency transformer stepless adjustment for controlling the inspection and rolling speed
4. Amendable electronic length-measuring device can count fabrics in meter, yard and totalization length accurately
5. Automatic stop device when without cloth
6. The fabric-guide assembly is optional
7. The domestic cutter or import cutter is optional
8. The cutter also can be made manual or automatic

Technical Parameters
1. Max. Diameter 500mm~1500mm
2. Working speed 1800mm~3500mm
3. Rolling speed 0~60m/min
4. Edge-aligning accuracy ± 6mm
5. Max error for length counting 0.50%
6. Dimension 2500(L)*1505(W)*2130(H)mm
7. Weight 1400KG
