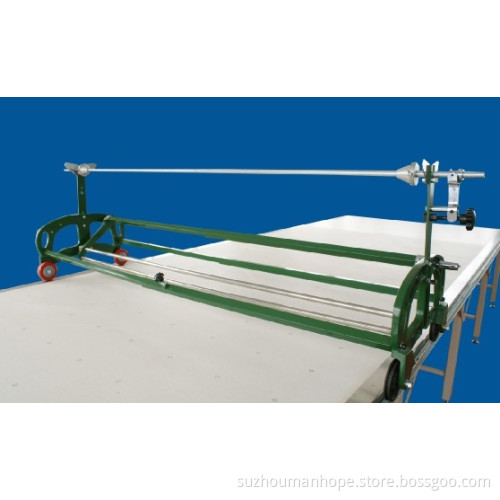

Rh-500 Manual Fabric Spreader

RH-500 Manual Fabric Spreader

Working width: 160-180-200-220-240 CM (63.0-70.8-78.8-86.6-94.5 inches)
Max roll diameter 50cm, weight 70kg, fabric thickness 5mm (each ply)
Spread all type of fabric from Lycra to Denim, from Jersey to technical fabric.
Max Spreading speed: 85 m/min with digital regulation
Possible to work with or without catcher, one way face up spreading, face to face, zig-zac, tubular and reverse (with special devices)
Cutting group with bi-directional cutter, moveable catcher at the beginning of the lay
4 driving wheels, Operator platform, Safety Devices on both sides.
Automatic fabric edge (selvage) alignment.
Automatic cutting group lift (max lay height 18 cm / zig-zac 14 cm)
PLC controlled, electronic control of fabric tension to spread any kind of fabric from lycra to denim, from jersey to technical fabric
Touch screen monitor schedule lay device up to 5 steps for standard version, up to 5 steps display for total plies, plies spread and to spread.
Display: Total number of plies - plies to spread and plies already spread
OPTION:
PLUS: Special belt cradle programable up to 10 steps and 5 colors, max spreading speed 100 mt/min & Brushless motors
Chasis MAX 28: For lays up to 28cm or 24cm with zig-zac
Reinforced cradle for roll max diameter 60cm and weight 150kg
Calendar for tubular fabric and top-slide to guide fabric (working width always 140cm)
Platform for fold fabric including opening bar
Reverse roll kit
Adjustable tubular divider from 180-230-300-430-640
Device to rotate tubular fabric of 90 degree lateral platform
Motorized loader from table to machine 412 Max 50Kg
Motorized loader from floor max. 150Kg
Manual turning table with cradle for face to face spreading.
Normal spreading table
Air-blowing spreading table
Conveyor spreading table
Motorized Transfer Section directed.
