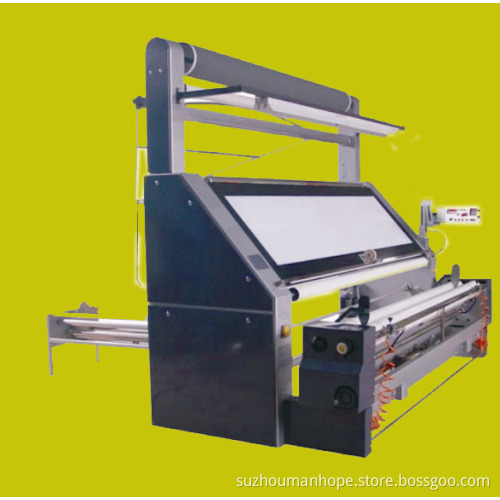

Tubular Fabric Slitting Inspection Machine (MT-B)
- Payment Type:
- L/C, T/T
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Suzhou City, Jiangsu Province |
|---|---|
| Payment Type: | L/C, T/T |
Product Description
Technical Feature:
1,Use two sets of non-section speed variable motor device synchronization control by two sets of frequency changer
2,One set of high speed driving motor cutter, illumine available on top of the cutting operation
3,One set of triangle fabric stretching device
4,One set of electronic eye device, automatic stop when inspect to the end of the fabric
5,Electronic yard meter counter calculate the length of fabric accurately, and able to predict the stop time
6,Outside installed one set of high lighting device(lighting by light tube)
7,One set of fabric inspection platform light box, installed with light tube
8,One set of double roller style fabric roll uploading device after inspection.
9,Two shape fabric stretching roller
10,Two fabric edge blowing devices
11,Fabric inspection platform equipped with foot pedal switch
12,Equipped with forward and backward switch device
|
1,Work area |
2200mm, 2500mm |
|
2,Speed |
0~50 m/min |
|
3,Size |
2700(L)*2900(W)*2400(H)mm |
|
4,Weight |
1200KG |
|
5,Standard Power Supply |
380V AC |
