Fabric Inspection Rolling Machine (RH-A02)
- Payment Type:
- L/C, T/T
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Suzhou City, Jiangsu Province |
|---|---|
| Payment Type: | L/C, T/T |
Product Description
Product Description
Product Description

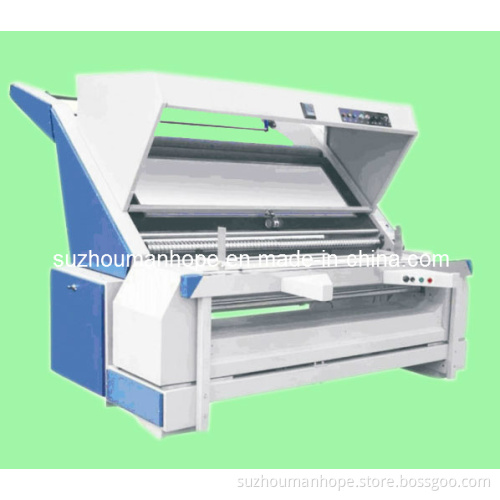

RH-A02 Fabric Inspection rolling Machine
Usage:
This fabric inspection machine is suitable for inspecting and rolling up all kinds of cotton, knitted, woven, printed, and tricot fabrics, etc.
Characteristics:
1. The maximum speed can be increased to 100 m/min in accordance with users need.
2. Photoelectric hydraulic edge-aligning system is adapted.
3. Provided with cloth expanding roller and bend roller to avoid wrinkle.
4. Equipped with counter which can record the length of the fabric.
5. It is inverter controlled and the speed is adjustable.
6. Both the winding roller and overfeed roller are droved by gearmotor.
7. Cross cutting device and electronic platform scale can be installed on this inspection machine.
Technical parameters:
1. Max. Fabric Width: 1800mm, 2000mm, 2400 mm, 2600mm, 2800mm.
2. Diameter of Winding Cloth: < 600mm.
3. Max. Linear Velocity: < 80m/min.
4. Main motor: 1HP*4P*60~50Hz 2sets.
- Expending motor: 1/2HP*4P*60~50Hz 1set.
- Edge-aligning motor: 1/2HP*4P*60~50Hz 1set.
5. Edge-aligning accuracy: +3mm or -3mm.
6. Dimension: 1300mm(L)*2500~3600mm(W)*1950mm(H).
Usage:
This fabric inspection machine is suitable for inspecting and rolling up all kinds of cotton, knitted, woven, printed, and tricot fabrics, etc.
Characteristics:
1. The maximum speed can be increased to 100 m/min in accordance with users need.
2. Photoelectric hydraulic edge-aligning system is adapted.
3. Provided with cloth expanding roller and bend roller to avoid wrinkle.
4. Equipped with counter which can record the length of the fabric.
5. It is inverter controlled and the speed is adjustable.
6. Both the winding roller and overfeed roller are droved by gearmotor.
7. Cross cutting device and electronic platform scale can be installed on this inspection machine.
Technical parameters:
1. Max. Fabric Width: 1800mm, 2000mm, 2400 mm, 2600mm, 2800mm.
2. Diameter of Winding Cloth: < 600mm.
3. Max. Linear Velocity: < 80m/min.
4. Main motor: 1HP*4P*60~50Hz 2sets.
- Expending motor: 1/2HP*4P*60~50Hz 1set.
- Edge-aligning motor: 1/2HP*4P*60~50Hz 1set.
5. Edge-aligning accuracy: +3mm or -3mm.
6. Dimension: 1300mm(L)*2500~3600mm(W)*1950mm(H).
