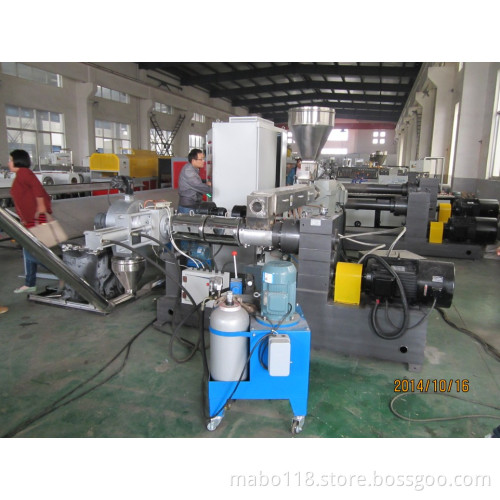

Soft PVC Granule Making Machine for Cable and Shoe

Pvc compounding plastic pelletizing line( two stage)

Twin/single Screw Extruder Specification:

Application:
PVC cable material, sole material, transparent bottle material, medical material, low smoke zero
Halogen or halogen free flame retardant cable material, EVA shielding material, PE/EVA carbon black
Mother material and all kinds of crosslinking cable materials so on, radiation crosslinking cable materials.

Features:
The first stage is Co-rotating twin-screw compounder. Use the twin-screw advantage of high-speed,
High shear, strong compounding to realize material full plasticization and compounding, because no
Drivehead back pressure, so we can according to different materials flexibly arrange screw array to
Achieve the best compounding condition.
The second stage is single screw extruder. The screw low-speed and deep groove feature provides
A low-cut processing environment, while mating barrel cooling, to prevent the plasticized material
From generating thermal decomposition in high-pressure extrusion.

Model		Screw Dia D (mm)	L/D Ratio	Screw speed N (r/min)	Motor power P (KW)	output Q (kg/h)
SHJ52/100	SHJ52	50.5	24~48	500	37 / 45	100~350
	SJ100	100	7~20	85	30 / 37
SHJ65/150	SHJ65	62.4	24~48	500	55 / 75	200~500
	SJ150	150	7~20	85	37 / 45
SHJ75/180	SHJ75	71	24~48	500	90 / 110	400~800
	SJ180	180	7~20	85	45 / 55
SHJ95/200	SHJ95	93	24~48	400	200 / 250	700~1500
	SJ200	200	7~20	85	55 / 75
