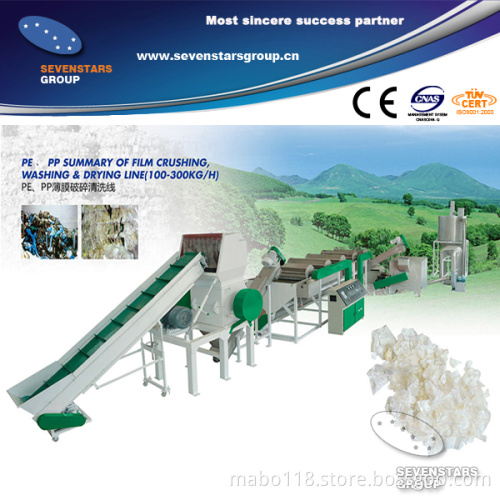

PP PE Film Washing Machine

PP PE film washing machine is composed of separator, crusher, cold & hot washer, dewaterer, dryer, packing system, etc. And pe pp film recycling line has the following features:
1. High automation level to reduce production cost on labor and ensure high output.
2. PLC control system is convenient to operate and monitor.
3. All parts contacting with material and water are made of high-quality 304 stainless steel.
4. Ideal impurity removal effect.

The whole PP PE film washing machine includes:

1. Belt convoy: Waste film feeding

2. Crusher: Film crushing

3. Frame: we can design the diameter of the hole according to customer's requirement.

4. Screw loader: Scrap conveyor

5. Floating washer: Cleaning film scraps and separating remained dirt and dust.

6. Screw loader: Scrap conveyor into hot washer

7. Hot washer: Connected with steam boiler. Steam supplied into washing tank to heat water and scraps. Hot water makes waste loosen from film. Meanwhile add caustic soda and cleaning chemicals to remove dirt and oil from film.

8. Screw loader: Scrap conveyor

9. High-speed friction washer: Get rid of dirty waste and oil.

10. Screw loader: Scrap conveyor

11. Floating washer: Cleaning film scraps and separating remained dirt and dust.

12. Centrifugal dryer: Dewatering

13. Pipeline dryer: Hot air dryer

14. Storage silo: Storage silo for scraps

15. Electric cabinet: PLC control
