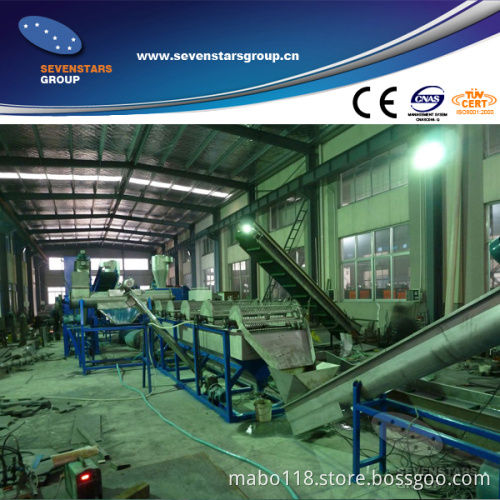

PP PE Film Water-Ring Pelletizing Line

pe pp film pelletizing machine

Feature and Function of  pe pp film pelletizing machine:

Water ring type pelletizing line,recycling PP PE film bags,make them into pellets.

Process flow of the pe pp film pelletizing machine:

Conveyor PE film compactor Extruding system Die-head and High speed Net exchanging system water ring pelletizing machine water tank dewatering machine vibrating sieve Air Blower Storage hopper

Detailed description of  pe pp film pelletizing machine

1. Conveyor:convey PP PE film or flakes into compactor.

2. PE film compactor:crushing and compress film,and feed compressed film into extruder forcedly,to make the production capacity high and stable.

3.Extruding system:plasticizing material and exhausting gas.

4.High speed Net exchanging system and Die-head:filter material impurity,to make production more stable.

5.water ring pelletizing machine:cutting pellets in water.

6.Water tank:cooling pellets.

7.Dewater machine:make pellets dry.

8.Vibration sieve:remove bad pellet and keep good pellet.

9.Air Blower:convey good pellets into silo.

10:Storage silo:keep pellet.
