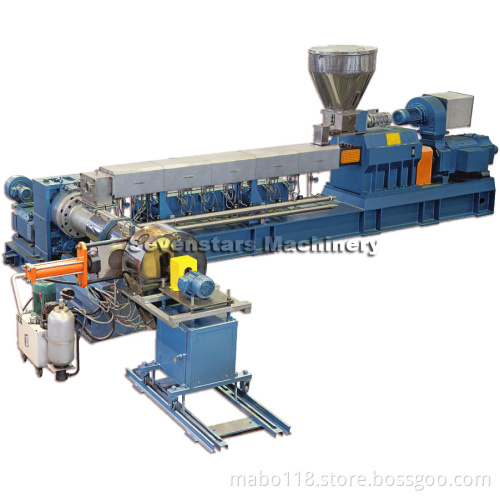

Two Stage PP PE Film Granulating Line

FEATURES:
1. Widely used for various plasctic recycling.
2. Good process ability for materials containing much water and and impurities.
3. Perfect for recycling LDPE, HDPE, PP, BOPP, EPS Plastic Film/Bag/Foam Waste
4. Double Stage Extrusion to process film waste with printed surface as well as film waste with water content
5. The main extruder is strain die head/noodle type, while the second extruder features die face cutting
6. Incorporates crusher/grinder, extruder, and pelletizer into one complete recycling line
7.2 sets of hydraulic later-slide type screen changer for non-stop operation
Screw diameter available from 65 mm ~ 150 mm

Main Technical Parameters
Model	L/D RATIO	PELLETIZING WAY	APPLICABLE MATERIALS	OUTPUT
120/130	16-40/1	Water cool strand pelletizer or Water ring die-face hot pelletizer	PET, PE, HDPE flakes, PE, PP Film, ABS, PA etc	200-300
130/150				300-400
150/180				450-550
