PVC pipe machine

UPVC pipe making machine can produce PVC pipe with different diameter from 16 upto max 800mm which are widely used as electrical conduit, water pipe, drainage pipe, agriculture and so on.

the wall thickness or pressure rating can be made according to customer's requirements for various application.

Production flow of PVC pipe:

Material batching mixing-extruding--molding-vacuum calibrating and cooling-hauling-printing-cutting-final PVC pipes(or belling to r or u type socket-final PVC pipes with socket)

The main machines needed for PVC pipe production:

-PVC mixer

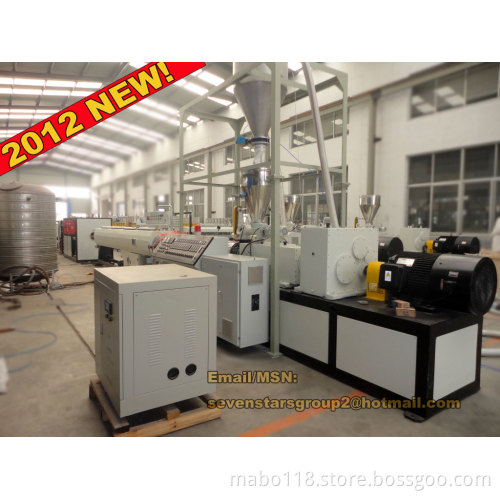

-PVC pipe extrusion line

(Including autoloader, conical twin screw extruder, mould, vacuum calibration chamber, hauling machine, printer, auto cutter- stacker)

- PVC pipe belling machine (optional)

- PVC pipe crusher& PVC miller

- Air compressor

- Water chiller (optional)

Please check the popular model of PVC pipe extrusion line which is mostly selected by customers:

odel	SJSZ-63	SJSZ-110	SJSZ-160	SJSZ -250	SJSZ -315	SJSZ -450	SJSZ -630
Extruder	SJZ55/110	SJZ55/110	SJZ65/132	SJZ80/156	SJZ80/156	SJZ92/188	92/188
applicable OD(mm)	16-63	20(50)-110	75(110)-160	75(110)-250	110(200)-315	200-450	315(400)-630
Max capacity(kg/h)	180	180	250	350	350	700	750
