PE PP Film Plastic Washing Machine

It's used to crush, washing PE/PP film for pelletizing reclaiming.

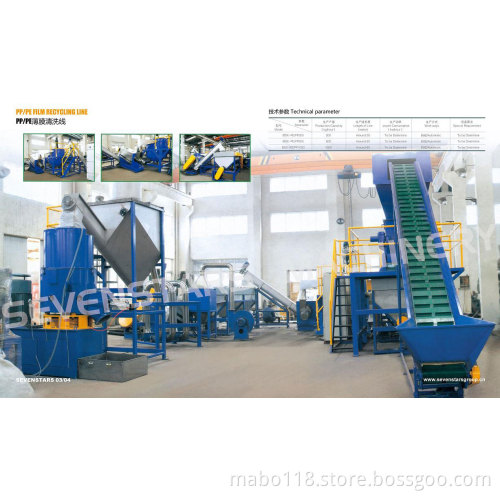

The main machines included in the washing line are:
Conveyors, crusher, floating washer, centrifugal dewatering machine, hot air dryer, final product silo.

Popular model mostly selected by plastic film recycling company:
300kg/h -500kg/h plastic film washing line

after crushing washing drying, the film flakes can be aggregated into small granules, then feed into extruder for making pellet or it can be directly feed into our new pelletizing machine with compacting machine.

No.	Name	Technical parameter
1	Belt conveyor	1. Effective conveyor length: 4000mm 2. Motor power: 1.5Kw 3. Gearbox ratio: 20:1 4. Speed adjust by manual 5. Width of conveyor belt: 600mm 6. Height can adjustable
2	PC800 crusher	1. Motor power: 30kw 2. Mesh diameter:φ30mm 3.Tactical diameter:φ320mm 4. Feeding inlet: 900mm×650mm 5. Quantity of fixed blade: 4pcs 6. Quantity of rotating blade: 8pcs 7. Capacity: 300-350Kg/h
3	Screw loader	1. Motor power: 2.2kw 2. With washing function 3. Water tube inlet size: 1.5inches 4.Part contact with material: stainless steel
4	Friction washer	1. Motor power: 5.5kw 2. Screw rotating speed: 400rpm 3. Length of screw: 2500mm 4. With high pressure water spraying
5	Floating washing tank	1. Stirring motor power: 1.5kw+2.2kw 2. Effective length:6000mm 3. Water tank adopt ball float 4. Discharge screw motor power: 2.2kw 5. Contact part with material: Stainless steel 6. Dimension(L*W*H): 6400×1100×1700mm
6	Screw loader	1. Motor power: 1.5kw 2. Part contact with material: stainless steel
7	Dewatering machine	1. Motor power: 30kw or 45kw 2. Rotating speed: 1000rpm 3. With drainage device 4. Part contact with material: stainless steel 5. Dimension(L*W*H): 1750×1500×1500mm
8	Pipe drying system	1. Suction blower motor power: 5.5kw 2. Heating power: 36kw 3. Pipe is made of stainless steel
9	Storage hopper	1. Volume :1.5m³ 2. Hopper body is made of stainless steel
10	Electric cabinet	Electric elements: 1. Circuit-breaker, AC contactor, press button adopt Schneider or Siemens brand. 2. This electric cabinet is used to control all machines in PE/PP film washing line.
