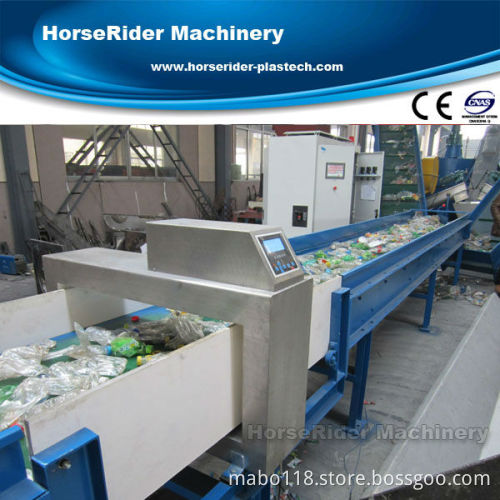

PET Washing Machine

PET washing line/PET bottle washing line/PET flake washing line (including crushing, washing, drying, granulating)

Application for PET washing line:

This recycling line is composed of garbage separation (automatic & manual), bottle & flake crushing, cold & hot washing & cleaning, flake dewatering & drying, dust & label removal, packing, etc.

Basically the standard process for PET bottle recycling line design as below:

De-baling(bale opener)------ Label Scrapping(lable remover)-------- Persorting------Bottle Pre-washing ------ Manual Sorting and Metal Detecting-----Wet Grinding(crusher)-------Gravity Separation(floating washer)-------Chemical Washing for PET Flakes(Hot washer)-------High speed friction washer ------- Floating washing tank ------- Rinsing(clean water spraying)--------Drying--------Packing/storage hopper
Feature for PET washing line:

1. High automation level, try best to reduce your cost on labor (especially for three shifts) and ensure high processing capacity: 150-2000kg/hr
2. Friendly control system (PLC integrated & separated control on each machine) and Touch screen panel, easy for operation, monitor and emergency stop.
3. All parts contacting with plastic material and water are made of high-quality 304 or 316 stainless steel; Ensure no second pollution to flakes.
4. Ideal impurity removal effect. Here is from our customer's feedback.

Condition of final PET flake for PET washing line

Moisture: Not more than 1.0%
PVC Content: Not more than 200ppm
Metal Content: Not more than 20ppm
Label, ring and caps Content (i. e. PE, PP): Not more than 240ppm
Total amount: Not more than 560ppm

Nowadays, our PET washing line have been exported to many countries & regions, e. G. Latin-America, Mideast, Russia & MID-Asia, Africa, etc.

Welcome for your kind inquiry letter, I will show you the most attractive offer very soon.
