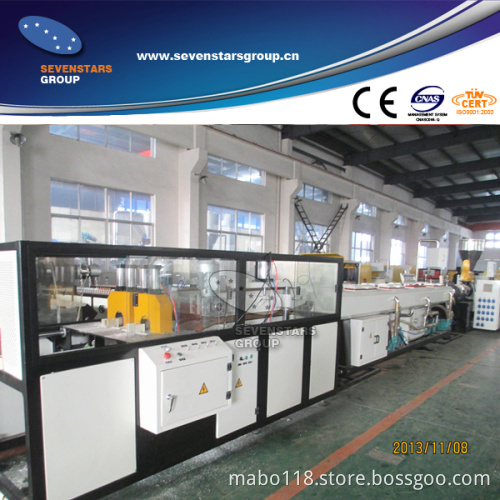

PVC Double Pipe Production Line

Feature
1) Main machine uses PVC high efficiency screw, and notch feeder with powerful water
Cover cooler, which has greatly improved transmitting capability and ensured
Extruding. DC running electric machine with high-quality speed adjuster
2) Applied for the basket-shaped composite electric head for processing polythene,
Which not only ensures the stability of high efficiency extruding, but also achieves
The minimum stress and highest pipe quality brought by low melting temperature
3) Adopting high efficiency double-cavity vacuum calibrating technology and spray-paint
Cooler gullet, which improve the finished product passing rate, and meet
The requirements of high speed manufacturing. Vacuum calibrating platform and cooler
Gullet are all made of stainless steel
4) Adopting multi-track traction, through the central motor to run all the tracks
To reach same height, and ensure roundness of pipes
5) Adopting fully automatic control system with high precision, reliable operation,
Easy and convenient handling
6) Suitable pipe diameter: 16 - 630mm

System configuration:
(a) Feeding machine
(b) Conical double-screw extruder
(c) Mould
(d) Vacuum Calibrating tank
(e) Hauling off machine
(f) Printing machine
(g) Pipe cutting machine
(h) Pipe pile-up frame
(i) Auxiliary machine such as feeding, belling and crushing machine.
