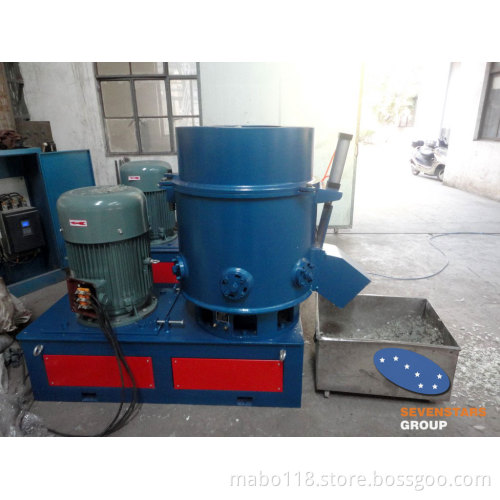

PE/PP/BOPET/OPP plastic film agglomerator

Granulating machine's Features:


GHX high speed granulator makes plastic films and materials with less than 2mm wall thickness materials into granules. It is suitable for soft PVC, HDPE, LDPE, soft PE, PS, PP, BOPET, OPP and other thermoplastic wastes and films and froth PS wastes. When the waste plastic is supplied into the chamber of such machine, it will be cut into smaller chips due to the crushing function of the rotating knife and fixed knife. During the crushing processing, the material that soaked up lots heat from the frictional movement of material being crushing and the wall of container will be going to become semi-plasticizing state. The particles will stick with each other due to the function of plasticization. Before it sticks each other completely, the cold water pre-prepared is sprayed into the material being crushed. The water will be evaporated off quickly and the surface temperature of material being crushed drop down quickly also. So the material being crushed will become small particles or granules. It is easy to recognize the particles by different size and can be colored by using of color agent being putted into the container during the crushing processing.
The particles can be used for extrusion or injection mould machine directly. Also can be further pelletized for some advanced requirements.


We have the certification ISO9001: 2000. So the quality of our products are reliable.

	GSL-100	GSL-200	GSL-300	GSL-500	GSL-600	GSL-800
Total Volume(L)	100	200	300	500	600	800
Effective volume(L)	75	150	225	375	450	600
main shaft speed(r/min)	1050	1000	950	750	750	750
Refrence Capacity(kg/h)	100	150	200	300	450	550
Motor power(KW)	37	55	75	90	110	110
weight(kg)	1000	1200	1800	2500	2700	3000
