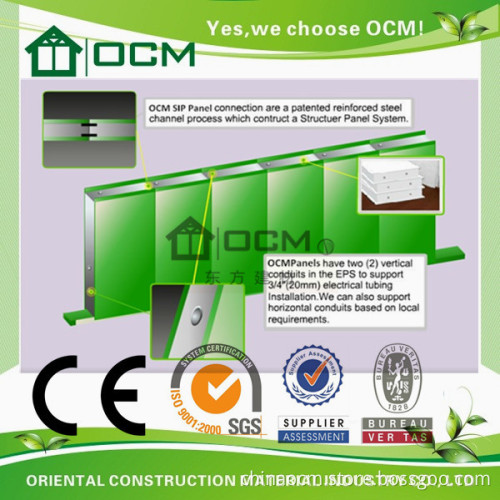

MGO Strip Connection

Magnesium oxide board also called MGO board and Fireproof board is manufactured by using special craft through totally automatic product line. The materials of magnesium fireproof board are Magnesia(MGO), Magnesium Chlorid(Mgcl2)and Alkali glass fiber net.

Performance

1 Fireproof Board

OCM MGO board was tested by the National Center for Quality Supervision and Testing of Fire Building Materials (NFTC). Its fireproof level is rated level A (nonflammable level)

2 Moisture-Resistance

OCM MGO board is excellent in moisture-resistance. Dry bending strength is 15Mpa. Bending strength under absorbed moisture is 22Mpa.

3 Heat Insulation

OCM MGO board has heat prevention material incorporated, it has great feature of heat prevention. Thermal resistance is 1.14m2k/w.

4 Sound Insulation

OCM MGO board is proved to have good noise insulation property after inspected by the National Center for Quality Supervision and Testing of Fire Building Materials (NFTC), The noise insulation factor of the wall can reach 44dB and 47dB. It has the best noise insulation constitution in China, especially the 95mm wall comprised by the 10mm board.

5 Bump-resistance and light

OCM MGO board is a light board. Its density is less than 1.0× 1.03kg/m3. At the same time its bending strength and impact resistance is excellent. Also, it will maintain its' quality during construction. It is light, It can save time, space, weight and expense. It is a new and high efficient wall.

Specification

1. Standard Size: 1220*2440mm; 1200*2400mm

2. Max width is 1220mm and max length is 3660. Other sizes can be cut.

3. Thickness 3-25mm

4. Edge: Square, tapered, beveled

5. Backside treatment: Texture and sanded

Application

Partition board

Ceiling board

Lining of fireproof board

Core of fireproof door
