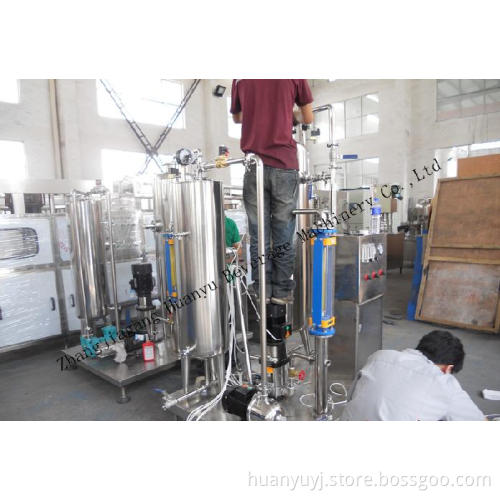

Beverage Mixer (QHS-2500)

1. APPLICATION:
This series machine applied advanced gas & liquid mixing device, be used for carbon acid type beverage produce, 3-in-1 mixing for syrup, water and carbon dioxide supply the filler used, Also it can supply to thin beer or aerate gas beer and produce sprying wine etc. This mixer is advanced in technology, even in mixing, reliable in performance, compact in structure, easy in operation. It is suitable for aerated beverage firm of large, middle or small factory.

2. Technological Specifications & Basic Parameters
Throughput: 2.5t/h
Syrup & water proportion adjust bound: 1: 3-1: 10
Aerated quantity: (CO2: H2O vol. Proportion)≥ 2.5
Mix precision: ≤ 2%
Cold water enter temperature: 0-40C
Cold water enter pressure: 0.01-0.08 Mpa
Syrup enter temperature: 2-80C

Syrup enter pressure: 0.01-0.08MPa
CO2 enter pressure: 0.7-0.8 MPa
CO2 pure degree: ≥ 99.9%
Store tank work pressure: 0.2-0.5 MPa
Power: 1.5KW
Dimension: 1200X1000X2100mm
