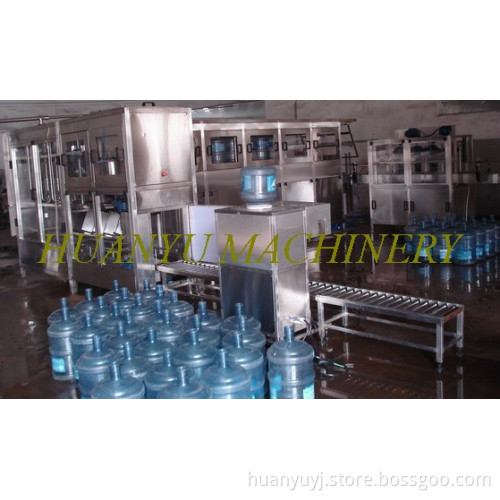

Barreling Production Line (QGF-600)

The main products of our company are: Bottle-filling, barrel-filling, can-filling and cup-filling complete set of facilities for all sorts of eatable liquid, carbonisc acid beverage, mineral water, pure water, juice, fruit tea, bean milk, wine, etc. And all sorts of water, mineral water, pure water. Among our facilities, the CGF series and DGF series triune bottle-filling beverage production line, QGF series barrel-filling beverage production line and QHS series beverage mixing machinery are all made according to advanced technique of German, Italy and Japan. These products are marine and all with good quality, which are not only sallable in 29 provinces, cities and autonomous in China.

MAINLY TECHNICAL SPECIFICATIONS

TYPE QGF-80 QGF-120 QGF-240 QGF-300 QGF-450 QGF-600
Filling heads 1 1 2 2 3 4
Barrel Size (mm)
Φ276x490 Φ276x490 Φ276x490 Φ276x490 Φ276x490 Φ276x490
Capacity (b/h) 80-100 120 240 300 450 600
Gas Pressure 0.4-0.6Mpa
Gas Consumption 0.6 0.6 0.8 0.9 1.8 2.5
Power (KW) 1.38 1.75 2.1 3.0 3.8 6
Voltage 380V/50HZ
Outline Size (mm) 3100x650x1550 3190x650x1550 3100x900x1650 3100x900x1650 3550x1100x1800 3800x1100x1800
Weight (kg) 680 800 800 1000 1600 2300
Barrel Capability 18.9 L
