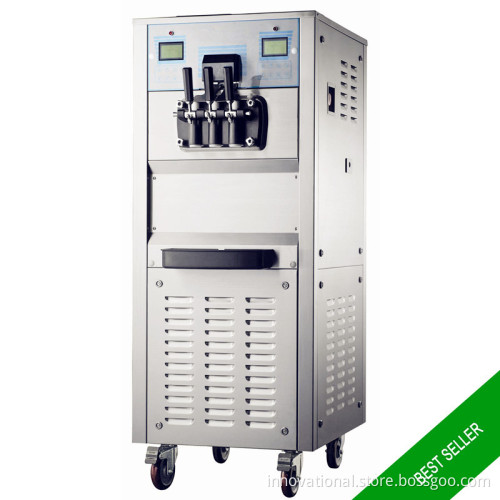

Model-378A (Capacity 70L/H, Double systems, LED panels, Air pump) Ice Cream Machine
- Payment Type:
- L/C, T/T, Western Union
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Changshu, Jiangsu, China |
|---|---|
| Payment Type: | L/C, T/T, Western Union |
Floor Model:378A
* Double Systems
* Air pump
* Twin flavours + one mixed
* 2x 3.2 Liters Cylinder
* 2x 15 Liters Hopper
* 70 Liters/H
* Stainless Steel Panels
* Double LED touch button control panels
Capacity
70 Liters/H ,550 cones/hour (100ml/cone)
(Capacity varies depending on condition of mix and environment)
Double systems
Two microprocessor controls, can separate control of each flavour.Both sides can work separately.
Product Offering
Offer all popular soft serve variations from low or non-fat ice cream to custards, yogurt and sorbet.
Freezing Cylinder
Two, 2×3.2 liters
Mix Hopper
Two, 2×15 liters
Separate hopper refrigeration (Pre-cooling) maintains mix temperature below 5ºC
Refrigeration System
Main refrigeration:
Two compressors: 2×6486 BTU/hr. R404a
Separate hopper refrigeration (Pre-cooling.):
One compressor: 420 BTU/hr. R134a
(BTU may vary depending on compressor used.)
Beater Motor
Two, 2.0HP
Specifications
Voltage : 380V/450V-50HZ Power : 5.0 KW
Net weight:260kg Gross weight: 280kg
Machine size:600x700x1540mm Packing size:700x800x1750 mm
Quantity for20":21 sets Quantity for 40":42 sets
Air pump(Model number with letter A)
Grind mix with more air to more softer and smoother product, more overrun.
Mix Low Indicator
When mix level is low, the Mix Low light turns "ON" to alert operator to add mix.
Hardness Indicator
Displays hardness status of the refrigerated product to ensure product quality.
Standby
During long no-use periods, the standby feature maintains safe product temperature in the mix hoppers and freezing cylinders.
Electronic Controls
The microprocessor controls automatically regulate refrigeration by monitoring product temperature and viscosity to maintain consistent quality.
Air Cooled
Required clearance: minimum 152mm (6") on both sides. Unit rear must be placed against a wall to prevent recirculation of hot air. Minimum air clearances must be met to assure adequate air flow for optimum performance.
Options:
1,Manufactured upon request, not available in stock
2,Ice cream cone&cup dispenser
3,power suplly 380V/60HZ no stock
4,Local specific plugs of power supply wire.
5,Cover of dispenser door
