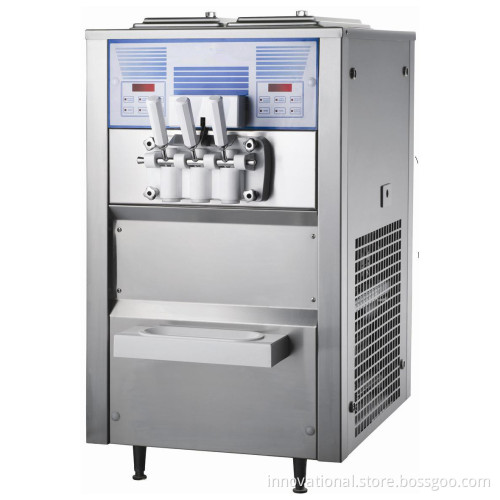

Soft Ice Cream Machine Model-248 (Capacity 48L/H, Double systems)

* Double Systems

* Gravity feed

* Twin flavours + one mixed

* 2x 1.7 Liters Cylinder

* 2x 12.5 Liters Hopper

* 50 Liters/H

* Stainless Steel Panels

* Double touch button control panels

Capacity

48 Liters/H ,390 cones/hour (100ml/cone)

(Capacity varies depending on condition of mix and environment)

Double systems

Two microprocessor controls, can separate control of each flavor.Both side can work separately.

Product Offering

Offer all popular soft serve variations from low or non-fat ice cream to custards, yogurt and sorbet.

Freezing Cylinder

Two, 2×1.7 liters

Mix Hopper

Two, 2×12.5 liters

Separate hopper refrigeration (Pre-cooling) maintains mix temperature below 5ºC

Refrigeration System

Main refrigeration:

Two compressors: 2×3800 BTU/hr. R404a

Separate hopper refrigeration (Pre-cooling.):

One compressor: 420 BTU/hr. R134a

(BTU may vary depending on compressor used.)

Beater Motor

Two, 2HP

Specifications

Voltage : 220V/240V-50HZ

Power : 3.5KW

Net weight:210kg Gross weight: 230kg

Machine size:550x780x960mm Packing size:650x970x1160 mm

Quantity for20":27sets Quantity for 40":54sets

Hardness Indicator

Displays hardness status of the refrigerated product to ensure product quality.

Standby

During long no-use periods, the standby feature maintains safe product temperature in the mix hoppers and freezing cylinders.

Electronic Controls

The microprocessor controls automatically regulate refrigeration by monitoring product temperature and viscosity to maintain consistent quality.

Air Cooled

Required clearance: minimum 152mm (6") on both sides. Unit rear must be placed against a wall to prevent recirculation of hot air. Minimum air clearances must be met to assure adequate air flow for optimum performance.

Options:

1.Manufactured upon request, not available in stock

2,Ice cream cone&cup dispenser

3,Power Supply:220V/60HZ

4,Local specific plugs of power supply wire.

5,Cover of dispenser door
