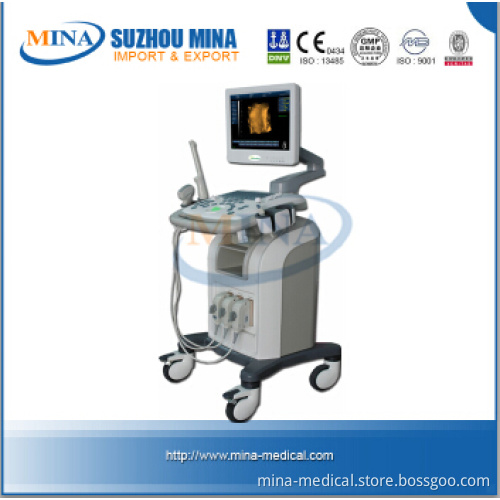

Color Doppler System with Newest Designed (MINA-SS1800)

· Full digital imaging technology
· LCD monitor
· Up to 3 active probe connectors
· Broadband Multi-frequency probes
· 512/1024 frame cine loop
· 8 segment TGC
· Powerful information management
· Complete application software packages
· Large capacity hard disk
· USB ports
· Compatible with laser/inkjet printers
· Fashion and ergonomic design
Operating Modes:
· 2D mode imaging in fundamental and harmonic mode
· M mode with advanced cine loop and image review
· Color doppler velocity mode
· Power doppler mode(CDE)
· Directional color power doppler mode(DCDE)
· Pulsed wave spectral doppler mode(PW)
· Continuous wave spectral doppler mode(CW)
· Duplex mode
· Triplex mode
· Split screen real time display mode in 2D/2D or 2D/color
User Interface:
· User-centric ergonomic keyboard control panel
· On/Off task light and back-lit illumination of keyboard control panel
· Customized soft key selections displayed on screen provide easy and immediate access control
· Wrist support to help reduce operator repetitive stress injuries
· Multi-directional articulating monitor arm to furtherimprove ergonomics
· Wheel-look mechanism
Extended clinical capabilities:
· Abdominal
· Obstetrical
· Gynecological
· Cardiac
· Pediatric
· Urological and Prostate
· Vascular and small organ
· Neonatal
· Musculoskeletal
· Surgical scanning

— — Excellent imaging technology— —
Real-time dynamical focusing
It adopts continuous dynamical receiving aperture (CDA) and continuous dynamical receiving focusing (CDF). The Focus of real-time changed when receiving. That's to say, it can far field gradually according to the depth, so that the ultrasonic beam can be delicate in both short resolution will be greatly improved, so the frame rate will not be lower as the increasing of focuses

Smoothing processing technology of image
An advanced 2D image automatic filtering device is inserted to the system to realize smoothing processing and improve the clarity of fine structures of the tissues being checked up

Filtering technique
The filtering device used in this system can filter the noise signal of static and slowly-moving tissues or low-speed blood stream. It's hard to detect the noise, but this system can improve SNR and improve the quality of image effectively

— — Extraordinary application range— —
Endocavity ultrasound
It's a part of intervention ultrasound, which is mainly composed of vagina, esophagus, recta and gastro scope ultrasound. It can prevent the air and skeleton from affecting ultrasonic examination, and at the same time, it uses high-frequency probe., therefore a clear image can be received

Intervention ultrasound
It's branch of modern ultrasonic medicine. Ultrasound puncture technology not only can be used in cytologic examination, histology biopsy, intravenous radiography, and percutaneous puncture intravenous radiography, but also can be used in therapeutic examination including percutaneous puncture drainage technology, medicament injection
3D imaging
The computer can process and rebuild the ultrasonic echo collected according to the required image, and display the three-dimensional image. It's helpful to locate space, improve spatial resolution, and can make precise quantitative analysis (such as the measurement of volume), so as to provide all-round ultrasound patterns for clinic

Color Doppler Energy-gram (CDF)
It's totally new ultrasound pattern processing model. It's a color blood stream displaying method with Doppler shift strength (amplitude) as the information source, which can get rid of the dependence on detection angle in routine CFM display
