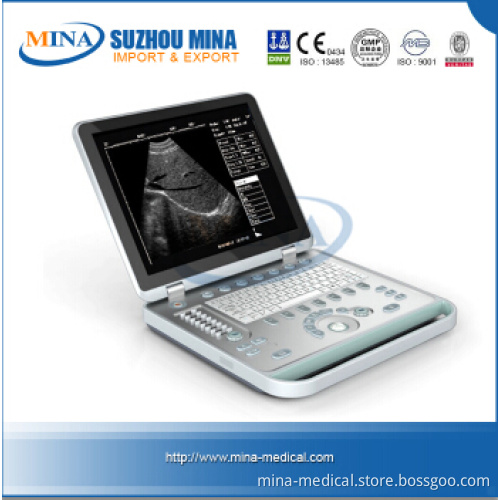

Economical Laptop B Ultrasound Scanner (ultrasound machine for pregnancy) (MINA-SS7)

Economical Laptop B Ultrasound Scanner(ultrasound machine for pregnancy) (MINA-SS7)


Specifications

15" LCD screen
Nice looking and light weight
Full digital imaging technology
Economical model with basic functions



Feature:
-15 inch LCD screen
-Full digital imaging technology, crystal-clear Image
-Pretty and light
-8 segment TGC
-Broadband multi-frequency probes
-2 probe connector
-Silica gel backlight gravure laser keyboard
-USB flash disk large volume image storage
-Cine loop
-Built-in battery(can work more than 5 hours)
-High Cost-effective


Specifications:
-Display size: 15 inch LCD screen
-Working frequency: 2.0MHz~10MHz
-Display mode: B, B+B, B+M, M, 4B
-Scanning range: Convex array 60° ~150°
-Amplification factor: 1.0, 1.2, 1.5, 2.0
-Gain control: 8 segments TGC and overall gain can be adjusted respectively
-Image processing: 8 γ Corrections, frame correlation, point correlation, line correlation,
Digital filtering, digital edge enhancement and pseudo color processing, etc
-Image gray-scale: 256 levels
-Scanning line number: 512 lines/frame
-Frame rate: 30 frames/second
-Digital scanning conversion: 512× 512× 8 bits
-Memory: USB flash disk large volume image storage
-Conventional measurements: Distance, perimeter, area, volume
-Obstetric measurement: Gestational weeks (BPD, GS, CRL, FL, HL, OFD, TTD, AC),
Expected date of confinement and fetus weight, etc.
-Report function: Auto make report
-Built-in battery capacity: Can work more than 5 hours
-Output interface: USB port, video.
-Overall size: 362mm× 340mm× 60mm
-Total weight: 4Kg(with battery)
Standard configuration:
One host, one convex probe, one aluminum trunk
Optional:
Transvaginal, linear, micro-convex probe;
Biopsy; Trolley; Printer.
