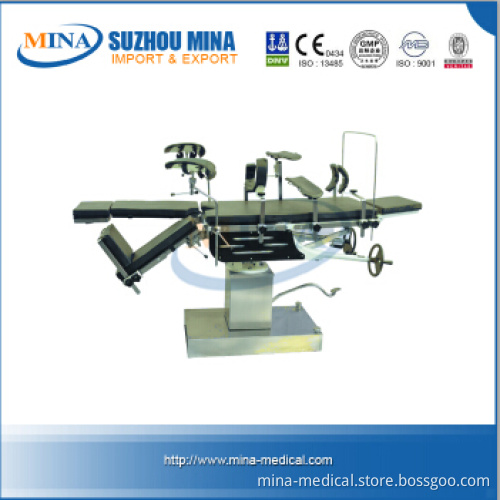

Multi-Purpose Operating Table, Head controlled (MINA 3008B-1)
1,Main Usage & Structure:
This table are compactly designed and sturdily constructed, and may be raised or lowered hydraulically by means of an oil pump. They are suitable for surgical procedures of the head, neck, thorax, abdomen, perineum and extremities as well as for gynaecological, obstetrical, urological and oto-rhino-laryngological operations. Various positions can be quickly and safely adjusted.
The controlling devices, hand wheels and crank handles are mounted at the head-end of the table. All positions of the table are controlled entirely from the head-end. Chassis inside & outside cover are stainless steel .

2Specifications:
Dimensions of Table Top:
Overall length....................................2040(mm)
Width.......................................480(mm)
Dimensions of Sections:
Head Rest....................................280×320(mm)
Back section.................................500×480(mm)
Kidney Bridge.................................84×470(mm)
Seat Section.................................370×480(mm)
Leg Section.................................510×480(mm)
Foot Rest....................................200×260(mm)
Table Top from Floor :
Min. Height ....................................800(mm)
Adjust....................................≥200(mm)
Range of Movements:
Max. Reversed Trendelenburg ...........................≥50°
Max. Trendelenburg.................................≥30°
Max. Lateral Tilt....................................≥20°
Adjustments of Sections :
Head Rest-raised from the horizontal........................≥30°
Head Rest-lowered from the horizontal .....................≥90°
Back Section-raised from the horizontal.....................≥80°
Back Section-lowered from the horizontal.....................≥8°
Kidney Bridge Elevation..............................80mm
Leg Section-lowered from the horizontal.....................≥90°
Leg Section-opened.................................≥50°
Foot Rest-can be kept horizontally or perpendicularly to the Leg Section.
Safe working load.......................................135kg

3Controlling Devices of Head-End Controlled Table:
1,Trendelenburg position, reversed Trendelenburg position and tilt in left or right direction are regulated by one single Hand wheel (2). The movements of the back section and leg section are controlled by Hand Wheel (3). For directions for use please see the label attached to the crank sleeve.
2,The kidney bridge is controlled by Crank Handle (1) situated at the center.
3,Both the ascending and descending movements of the table top are controlled by the oil pump. When the products leave the factory, the oil pump has been pumped into the pail, so the oil pump can not ascend. The Consumers must move the cover of the filling aperture at the fop of the oil pump. Use a funnel to refill the oil pump slowly. By pressing down Pedal (4) repeatedly, the table top, will begin to descend slowly and gently. Attention: Please infuse all the oil of barrel. Otherwise, the phenomenon that the tabletop can't be reached the maximum height may happen.
4,The moving and stabilization of the base. By loosening Handle (5) of the base clockwise, the table can move. On the contrary, it can be stabilized. Attention : Do not loosen or tighten a handle, otherwise, the phenomenon that the base is not stable may happen.
5,The rotation of the leg section is by Crank Handle(6).The opening movement of the leg section are controlled by Handle(7).
