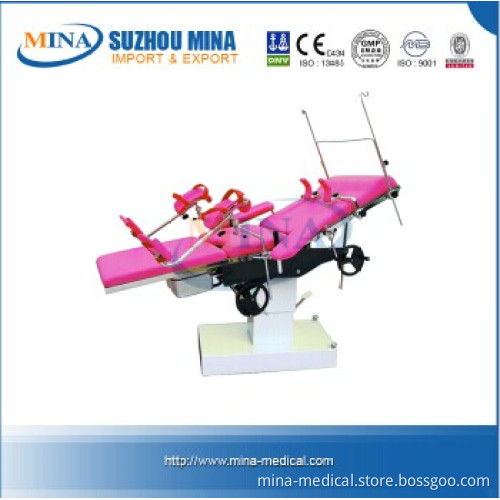

Medical Multi-Purpose Parturition Bed (MINA-06C)

Medical Multi-purpose Parturition Bed (MINA-06C)

1. General Description.:
This bed is designed for women's parturition and gynaecological operation. Leg section of the parturition bed can be disassembled, Various movement of the bed is controlled by human, Body posture is adjusted by mechanical drive organization. It can be raised or lowered hydraulically by means of an oil pump.
According to the matter, there are two types: Model MINA-06B and MINA-06C. The outer hulls of the model 06C are ordinary carbon steel, the other are stainless steel. The technical parameters and devices are same.
2. Specifications:
Dimensions of Table Top:
Overall length...…1250~1900mm
Width...…600mm
Dimensions of Sections:
Back Section...800× 600mm
Seat Section...400× 600mm
Leg Section...…650× 600mm
Table Top from Floor:
Max. Height...920mm
Min. Height...…680mm
Rising Distance: ...≥ 240mm
Adjustments of Sections:
Back section raised from the horizontal...…≥ 45°
Back section lowered from the horizontal...…≥ 10°
Reversed Trendelenburg...≥ 8°
Trendelenburg...…≥ 20°
Safe working load...135kg
3, Accessories:
1. Stand for anaesthetic and for hanging intravenous drip bottle 1 set:
Used for isolating the operating area during operation and can be used for hanging intravenous drip. Its height can be adjusted.
2. Shoulder rest and mattress 2set:
Mounted on each side of the bed and covered with sponge mattress, soft and comfortable. It supports the shoulder of the lying-in woman so as to prevent her body from moving backward. The distance between the two shoulder rests can be adjusted according to the width of shoulder.
3. Arm rest and mattress 2set:
Covered with sponge mattress, can be mounted on either side of the bed and used for intravenous drip and for measurement of blood pressure and pulse. It is soft and comfortable.
4. Handle 2set:
Provide a woman in labour to pull.
5. Leg support, foot board and mattress 2set:
There is one on each side, support the pregnant women or the patient legs, it also can be used for the pregnant women who kick with heel hardly in horizontal delivery. In order to adapt to the different maternal height, you can adjust its position if it is necessary.
6. Mattress on the table top 1set:
It includes three parts. It is made of sponge covered with imitation leather. Soft and comfortable, easy to use.
7. The contaminative basin can prevent the amniotic fluid leaks, it is easy to assemble and disassemble
4. Operation Instruction:
1) Operation of the oil pump:
Both the ascending and descending movements of the table top are controlled by the oil pump. When the products leave the factory, the oil pump has been pumped into the pail, so the oil pump can not ascend. The Consumers must move the cover of the filling aperture at the fop of the oil pump. Use a funnel to refill the oil pump slowly. By pressing down Pedal repeatedly, the table top will begin to descend slowly and gently. Until the table top can be elevated to its highest position. Attention: Please infuse all the oil of barrel.


5, Environmental condition
Transportation and stockpile environmental conditions
A)Environmental temperature: -40º C~+55º C.
B)Relative humidity: ≤ 80%.
C)Atmospheric pressure: 50kPa~106kPa.
Moving environmental conditions
A)Environmental temperature: 5º C~40º C.
B)Relative humidity: ≤ 70%.
C)Atmospheric pressure: 70.0kPa~106.0kPa.
