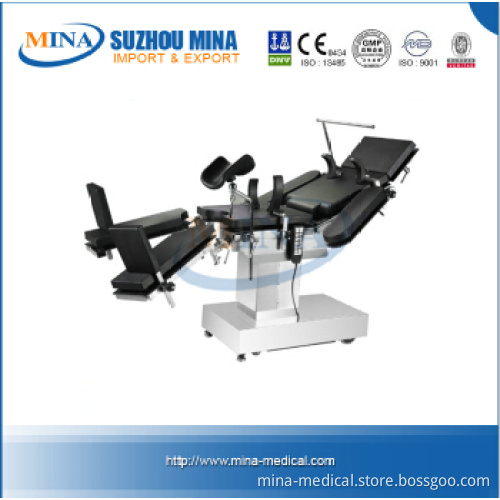

Electrical Hydraulic Operating Table (MINA-MM207)

Electrical Hydraulic operating bed(MINA-MM207)



PRODUCT ADVANTAGE
1. Imported Japan hydraulic engine
2. Imported electromagnetic valve
3. Imported sealing ring
3. Ultra-low position for long time operation
4. Do X-ray
5. Electrical control for leg board up & down
6. Waist can be lifted

TECHNICAL SPECIFICATION
Length: 1970mm
Width: 480mm
Min/max height: 680mm/980mm
Forward: ≥ 20° Backward: ≥ 15°
Leftward: ≥ 15° Rightward: ≥ 15°
Leg board fold downward: ≥ 90°
Back board fold upward: ≥ 75° Fold downward: ≥ 20°
Head board fold upward: ≥ 45° Fold downward: ≥ 90°
Waist board lifting: 110mm
Mains voltage: AC 220V± 10% 50Hz, 1.0kw
Input power: 500VA

STANDARDACCESSORIES
Anesthetic Screen Frame: 1piece
Shoulder support: 2
Waist Support: 2Arm rest: 2
Leg holder: 2
Foot Plate: 2Long slider: 2



FEATURES
The super low level design can enable doctor to conduct operation sitting by operating table.
The base adopts high quality 304 stainless steel which can be easily cleaned and sterilized.
The bed surface adopts imported carbon plastic plate, which can fulfill the needs of X-ray examination, photography.
The mattress is once foam molded by polyurethane with homogeneous force.
Various actions are controlled according to electric hydraulic working principle and by remote controller.
Japan Import motord and Electromagnetic valve.
Imported sealing ring and is durable.
Electric brake control which is easily for moving operating table.
