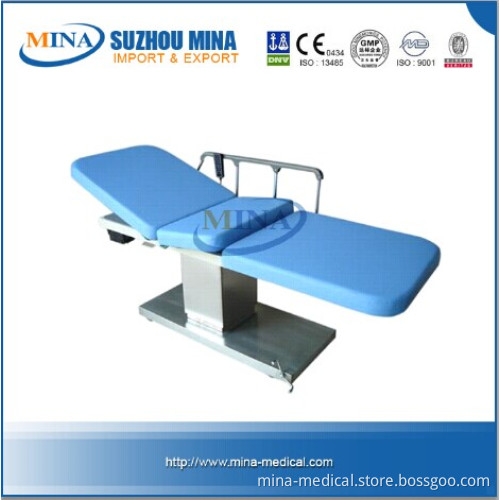

Medical Electrical B-Uilrasonography Examination Table (MINA-SF008)

Medical Electrical B-Uilrasonography Examination Table(MINA-SF008)

Main specification and features
1. Used for B-uilrasonography examination.
2. Stainless steel fram
3. Fabric and sponge filled cushion on the top platform
4. Position braking system
5. Two high quality OEM Motors
6. With 1 hand controller
7. Maximum Working Load: 175kg

The main parts, motors, are imported brands, more stable and precise.

Doctor can choose the suitable height according to requirement.
Elevation is electric controlled, back section is gas spring controlled
Bed surface is made of imported Japanese brand Achilles PVC material. Mattress is made from mould forming.
Disposal clean paper can be put under mattress, keeping the table clean.
Wheels are fixed on the bottom, easy to be moved and fixed.
Equipped with engineering plastic filth basin.

Technical Specifications:

Back section turning: Down≥ 8° Up≥ 60°
Seat section turning: Down: ≥ 8° Up: ≥ 16°
Power: AC 220V50HZ Size of surface: 1900 mm X 650 mm
Height adjustable range: 640 mm ~ 890 mm
Backrest rise range: 0° ~ 55°
Bottom part rise range: 0° ~ 40°
Central brake
