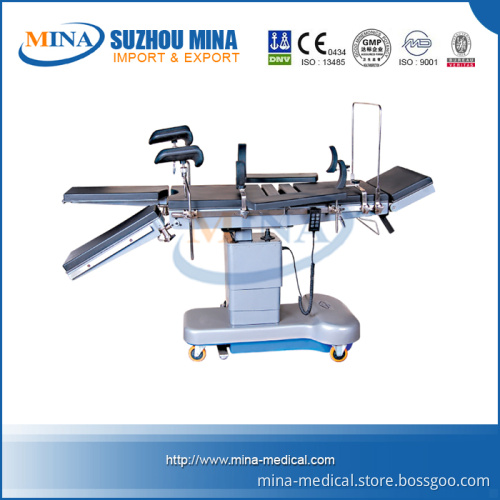

Electric Operating Table (MINA-99D)

Electric  Operating Table(MINA-99D)

Main Usage: Electric operating table can be operated for clinical use.
b) Structure :Operating table consists of two parts: mechanical and electro-hydraulic control system. Depending on manual operation, the product can meet the requirement of posture in clinical operation.

Specifications
Dimension of table top:
Overall Length:2100mm, Width:500mm
Dimension of section:
Head Section   250×500mm
Back Section   545×500mm
Waist Section  75×500mm
Seat section   450×500mm
Leg Section   600×240mm
Table top of from floor
Min Height    750mm
Max Height  1000mm
Adujst   250mm
Range of movements:
Reversed Trendelenburg ≥20°
Trendelenburg ≥15°
Lateral Ti ≥15°
Backward and Forward Movements ≥250mm
Adjustment of sections:
Head Section Raised  from the horizontal ≥45°
Head Section lowered from the horizontal ≥90°
Back Section Raised from the horizontal ≥75°
Back Section Raised from the horizontal ≥30°
Leg Section Lowered from the horizontal ≥90°
Leg section opened ≥90°
Kidney Bridge Elevated ≥80mm
Lifting speed 4~16mm/s
safe working load 135kg
  Device safety sortI     B
 IPX4   Ingress Protection:IPX4
 (AC)220V,50Hz  Power:(AC)220V,50Hz
 24V Internal electric source:(DC)24V
 14AH   Battery capacity ≥ 2.4AH
