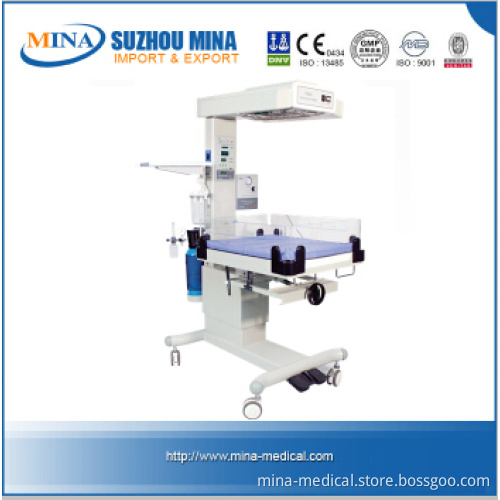

CE Certified Hospital and Medical Infant Warmer (MINA-FXQ4A)

CE Certified hospital and medical Infant warmer(MINA-FXQ4A)


Specifications

1: Adjustable height
2: Credible quality
3: CE/ISO/FDACertificate of conformity
4: 60 years manufactuer experience.



Specification:

1) Preheating, manual control, Skin-tempt mode
2) Computer temperature control servo, far-infrared radiation heater
Bilateral blue light
3) Radiation head that can be adjusted in horizontal angulations from 0° -90° C
4) Tempt setting and skin tempt display separately
5) RS-232 joint
6) Display timer of APGAR score with Acousto-optic prompt and continuous timekeeping
7) Infinitely adjustable baby bed tilt
8) Lucite baffle thickened for safety, which can be turned downward (in front and behind)
9) Baby bed may be placed under X - ray film box
10)With warning prompt for overheating and sensor fault; Self-detect function 11) Big bed convenient for operation
Misoperation alarm
12) Increase two trays, on which other equipment can be placed, such as monitoring equipment
13) Cylindrical trilby
16)40% thermostatic power heating function.
17) Import LED blue-ray light equipment is optional.
18) Elevating chassis is optional.
The national three levels of sound and light alarm safety system
19) Oxygen device, low pressure suction device, AMBU, the fixed shelf for infant head, head mask, Oxygen monitor

Main Use and Applicable Scope:

The product is applicable for the body temperature maintaining, emergency operation and intensive care of new-born baby, sick and weak infant and premature infant.
3.2 Normal Working Environment
A) Power voltage: (220± 22)V (50± 1)Hz;
B) Ambient temperature: 18~30° C, with the control temperature being at least 3° C higher than the ambient temperature
3.3 Product composition: Temperature controller, radiation source, bed frame, spot light and frame, etc.
3.4 Heater: Radiation-type far IR heating element.
3.5 Normal Working Environment:
A) Ambient temperature: 18~30° C, with the control temperature being at least 3° C higher than the ambient temperature;
B) Relative humidity: 30~75%;
C) Atmospheric pressure: 70~106Kpa;
D) Ambient air speed: E) Placed in an arena with relatively static air flow and without direct sunlight and other heat sources.
F) Power voltage: 220± 22V, 50± 1Hz
G) Consumed power: ≤ 1000VA
3.6 Basic Parameters
1) APGAR timing error shall not be more than± 4s at 1min, 5min and10min.
2) APGAR photo-acoustic time alarm can be synchronized with acoustic control of display at 50s to 1min, 4min50s to 5min and 9min50s to10min; The timer can manually reset within any accumulative time.
3) Illumination of spot light at the bed center: ≥ 100lx
4) Constant temperature time: Not less than 2h
5) Temperature uniformity: ± 2° C with the baby bed at the horizontal level:
6)Temp-controlled mode:
Mode for infant temp-control: Alarming when the temperature deviating by +1.5° C and -2.0° C after constant temperature is set.
Manual temp-control mode: The heater outputs at fixed energy level and at max output energy level.
7) Measuring range of skin temperature: 25.0° C~42.0° C
8) Setting range of skin temperature: 25.0° C~37.0° C
9) Operating time of manual temp-control: Set as 15min
