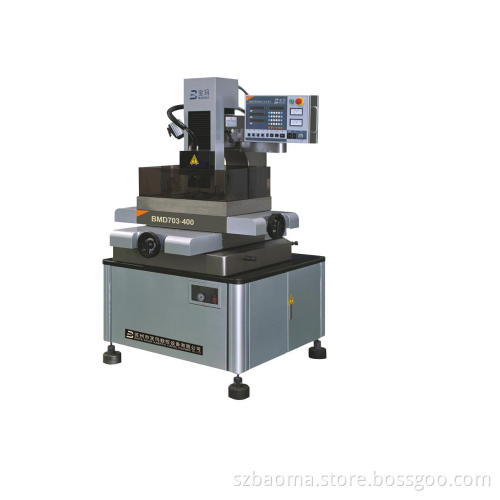

Super Speed EDM Drilling Machine
- Payment Type:
- L/C, T/T
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China |
|---|---|
| Payment Type: | L/C, T/T |
Product Description
Product Description
Product Description
Specifications
Hole Drilling EDM ,can drilling Tungsten Carbide,
Brass/Copper Tube electrode, Dia. 0.2-3.0mm
Depth: 0-300 mm
Speed: 60 mm2
|
Specification |
BMD703-400 | Universal Parameter | |
|---|---|---|---|
| Work table Size | 310x 486 mm |
Drilling Depth |
0 - 300 mm |
| Work Table Travel | 300 x 400 mm | Z axis Travel | 300+(320) mm |
| Load of Table | 300 Kg | Max. Drilling Speed | 60 mm2/min |
| Electrode Diameter | 0.2-3.0 mm | Max. Working Current | 30 A |
| Water Tank Capacity | 30 L | Max. Power comsumption | 3.5 KVA |
| Machine Weight | 700 Kg | Voltage | 220-415V / 50HZ |
| Machine Dimensions | 1236 x 1025 x 1934 mm | Working Solution | Water/Saponification |
| Packing Dimensions | 1430 x 1340 x 2000 mm | Function of setting depth | Yes |
| Control Type | ZNC: Z axis NC Control | Z axis Travel Control | Electric Motor |
