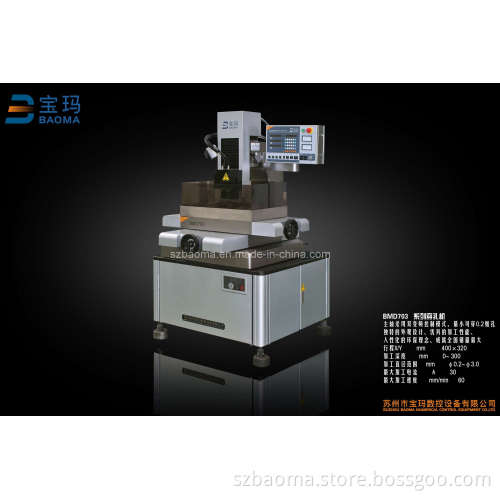

Micro-Hole Drilling EDM Machine
- Payment Type:
- L/C, T/T
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China |
|---|---|
| Payment Type: | L/C, T/T |
Product Description
Product Description
Product Description
Main Function
A. There is a window on the machine bed for pump pressure, which is easy and convenient to look and adapt water pressure.
B. Servo control system is adopted and improved, which make drilling re-track speed 2 times quicker than dB703
C. There is slider water tank, which saves space and is more environmental.
D. There is oil-tank for lubrication, which is more convenient to operate and fluid to lubricate.
E. Able to drill various conductive metals, such as stainless steel, chilly steel, solid carbide, copper, aluminum etc.
F. Able to drill holes range from diameter 0.2- 3mm with max depth-diameter ration 300: 1.
G. It is more stable while drilling hole of 0.2mm
H. Drilling speed 30-60mm/min
I. Able to drill directly into bevel or curve surface.
J. Three axis digital display
K. Drilling depth positioning function for Z axis
L. Control system can drill group hole and positioning automatically.
A. There is a window on the machine bed for pump pressure, which is easy and convenient to look and adapt water pressure.
B. Servo control system is adopted and improved, which make drilling re-track speed 2 times quicker than dB703
C. There is slider water tank, which saves space and is more environmental.
D. There is oil-tank for lubrication, which is more convenient to operate and fluid to lubricate.
E. Able to drill various conductive metals, such as stainless steel, chilly steel, solid carbide, copper, aluminum etc.
F. Able to drill holes range from diameter 0.2- 3mm with max depth-diameter ration 300: 1.
G. It is more stable while drilling hole of 0.2mm
H. Drilling speed 30-60mm/min
I. Able to drill directly into bevel or curve surface.
J. Three axis digital display
K. Drilling depth positioning function for Z axis
L. Control system can drill group hole and positioning automatically.
| Specification | BMD703-400 | Universal Parameter | |
|---|---|---|---|
| Work table Size | 310x 486 mm | Drilling Depth | 0 - 300 mm |
| Work Table Travel | 300 x 400 mm | Z axis Travel | 300+(320) mm |
| Load of Table | 300 Kg | Max. Drilling Speed | 60 mm2/min |
| Electrode Diameter | 0.2-3.0 mm | Max. Working Current | 30 A |
| Water Tank Capacity | 30 L | Max. Power comsumption | 3.5 KVA |
| Machine Weight | 700 Kg | Voltage | 220-415V / 50HZ |
| Machine Dimensions | 1236 x 1025 x 1934 mm | Working Solution | Water/Saponification |
| Packing Dimensions | 1430 x 1340 x 2000 mm | Function of setting depth | Yes |
| Control Type | ZNC: Z axis NC Control | Z axis Travel Control |
Electric Motor |
