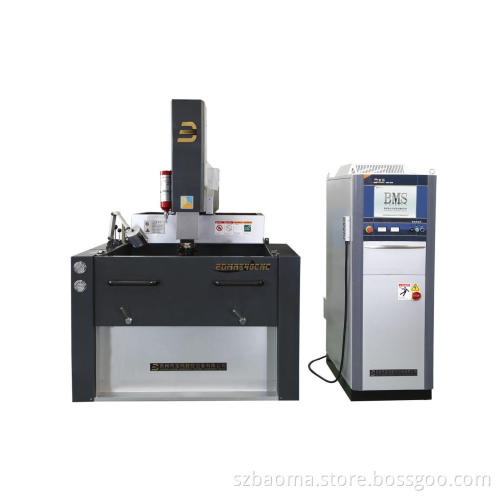

Edmn540CNC EDM Spark Machine

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	L/C, T/T

Product Description

Znc Sinker EDM, Die Sinking Machine
Japan SANYO DC Servo

Finish: Ra< =0.4um
Current: 60/100A
Max. Speed: 800mm3/Min

Parameters		UNIT	EDMN540CNC
Working Tank (LxWxH)		mm	1300 x 920 x 450
Max. Oil Level		mm	290
Table Size (LxW)		mm	800 x 500
Travel Size	X	mm	500
	Y	mm	400
	Spindle Travel(Z)	mm	300

Distance between Spindle Nose to Work Table	Min.	mm	300
Distance between Spindle Nose to Work Table	Max.	mm	600
Max. Table Load (Workpiece weight)		mm	1800
Max. Spindle Hold (Electrode weight)		kg	100
Oil Tank		L	800
Oil Tank Dimension (LxWxH)		mm	1500 x 1000 x 450
Control Method			AC / DC (Japan SANYO)
Rated Current		A	60
Machine Dimension (LxWxH)		mm	1800 x 1100 x 2200
Machine Weight		kg	3800
