EDM450CNC EDM Sinker Machine
- Payment Type:
- L/C, T/T
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China |
|---|---|
| Payment Type: | L/C, T/T |
Product Description
Product Description
Product Description

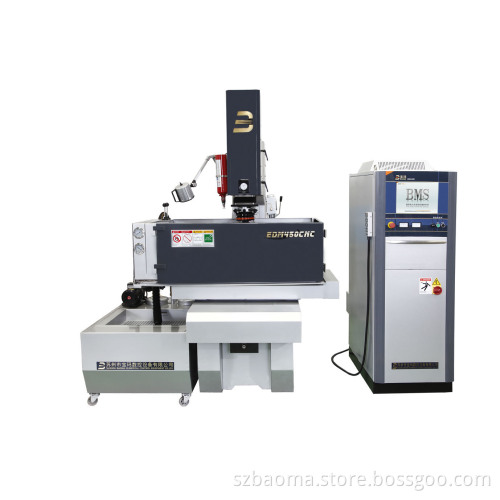

EDM Die Sinking Machine [ EDM450CNC ]
A. There is automatical A. R. C carbon surveillant device to prevent destroying workingpiece.
B. Steady circuit of big area electrode.
C. High and low clearance individual circuit.
D. PWM servo system, standard DC servo motor.
E. Synchronous discharge system of high voltage superposited.
F. Square wave and equal energy output.
G. Circuits of super-fine process.
H. Capacity of mirror process (negative pole).
A. There is automatical A. R. C carbon surveillant device to prevent destroying workingpiece.
B. Steady circuit of big area electrode.
C. High and low clearance individual circuit.
D. PWM servo system, standard DC servo motor.
E. Synchronous discharge system of high voltage superposited.
F. Square wave and equal energy output.
G. Circuits of super-fine process.
H. Capacity of mirror process (negative pole).
| Parameters | UNIT | EDMN450CNC | |
| Working Tank (LxWxH) | mm | 1200 x 850 x 450 | |
| Max. Oil Level | mm | 290 | |
| Table Size (LxW) | mm | 700 x 400 | |
| Travel Size | X | mm | 450 |
| Y | mm | 350 | |
| Spindle Travel(Z) | mm | 300 | |
| Distance between Spindle Nose to Work Table |
Min. | mm | 300 |
| Max. | mm | 600 | |
| Max. Table Load (Workpiece weight) | mm | 1000 | |
| Max. Spindle Hold (Electrode weight) | kg | 80 | |
| Oil Tank | L | 800 | |
| Oil Tank Dimension (LxWxH) | mm | 1500 x 1000 x 450 | |
| Control Method | AC / DC (Japan SANYO) | ||
| Rated Current | A | 60 | |
| Machine Dimension (LxWxH) | mm | 1640 x 1050 x 2150 | |
| Machine Weight | kg | 3500 | |
