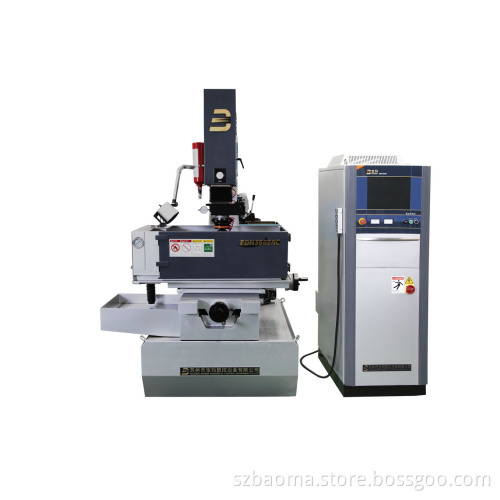

Cheaper Sinker EDM Machine

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	L/C, T/T

Product Description

Specifications

1. Best finish :<0.4um
2. High machining speed: 450mm3/min
3. Min. electrode consumption: 0.3%

Specifications / Parameters

Parameters	UNIT	EDM350ZNC
Working Tank (LxWxH)	mm	900 x 550 x 350

Table Size (LxW)	mm	600 x 350
Travel Size	X	mm	350
Y	mm	250
Spindle Travel(Z)	mm	180
Auxiliary Travel(Z)	mm	180
Distance between Spindle Nose to Work Table	Min.	mm	55
Max.	mm	445
Max. Table Load (Workpiece weight)	mm	800
Max. Spindle Hold (Electrode weight)	kg	120
Oil Tank	L	470
Oil Tank Dimension (LxWxH)	mm	1260 x 1100 x 460
Control Method		DC (Japan SANYO)
Rated Current	A	60
Machine Dimension (LxWxH)	mm	1500 x 1500 x 2200
Machine Weight	kg	1300

» Current Parameters

Max. Working Current	Best Speed / Efficiency	Best Electrode Loss	Best Surface Finishing	Input Power
60A	400 mm³/ min.	≤0.3%	Ra≤0.2um	7 KVA

» Accuarcy | Precision (Standard:GB/T 5291.1-2001)

Items	Resualt
Flatness of the workbench	0.03mm / 1000
X Axis Movement Straightness	in Y-X plane	0.015/ 500
in Z-X plane	0.015 / 500
Y Axis Movement Straightness	in X-Y plane	0.015 / 500
in Z-Y plane	0.015 / 500
Z- Axis Movement Straightness (Spindle Perpendicularity )	move on X axis	0.02 / 200
move on Y axis	0.02 / 200
Parallelism of work table	move on X axis	0.015 / 300
move on Y axis	0.015 / 300
X-Y Axis Squareness	0.015 / 500

» Configuration | Setup


Resine Sand Casting	Machine Body : HT250
Work Table: HT300
X/Y Axis:	Manual Hand Wheel
"TEFLON" face V type Hard way
Precision Ball Screw

Z Axis:	JANPAN SANYO DC Servo
TAIWAN "ABBA" V type Hard Way+ T Screw
JAPAN NSK Bearing

Universal	Denmark GRUNDFOS or Taiwan WALRUS Oil Pump
Taiwan Automatic Fire Extinguisher
Taiwan Halogen work lamp
Taiwan Skeet chuck
