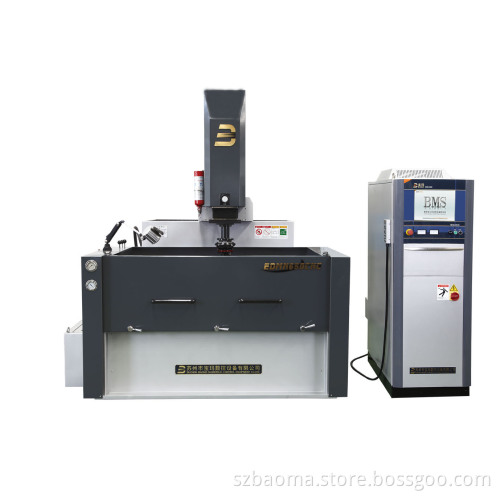

CNC Sinker EDM [ EDMN650CNC]
AC Servo: Japan YASKAWA or Panasonic
Linear guideway: Taiwan HIWIN
Denmark Grundfos Pump
Current: 90A
Smooth: Ra< =0.4um
Precision: < =0.005mm

Parameters		UNIT	EDMN650CNC
Working Tank (LxWxH)		mm	1612 x 985 x 540
Max. Oil Level		mm	330
Table Size (LxW)		mm	900 x 500
Travel Size	X	mm	600
	Y	mm	400
	Spindle Travel(Z)	mm	350

Distance between Spindle Nose to Work Table	Min.	mm	350
Distance between Spindle Nose to Work Table	Max.	mm	700
Max. Table Load (Workpiece weight)		mm	2000
Max. Spindle Hold (Electrode weight)		kg	150
Oil Tank		L	1000
Oil Tank Dimension (LxWxH)		mm	1900 x 1600 x 510
Control Method			AC / DC (Japan SANYO)
Rated Current		A	100
Machine Dimension (LxWxH)		mm	2000 x 2320 x 2530
Machine Weight		kg	4000
