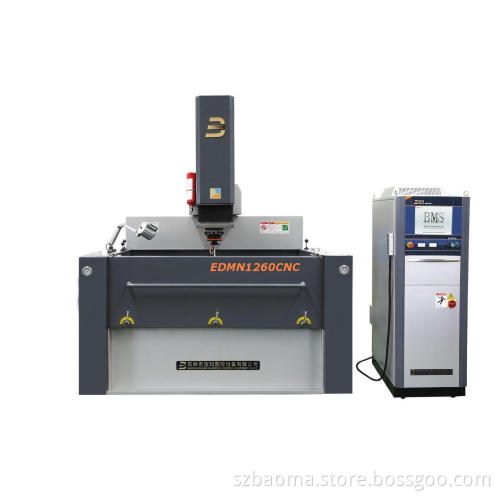

CNC Sinker EDM [ EDMN1260CNC ]
- adopt Taiwan HIWIN linear guideway;
- precision ball screw;
- adopt Japan SANYO AC servo motor;
- base machining current 90A;
- adopt Denmark Grundfos pump;

Parameters		UNIT	EDMN1260CNC
Working Tank (LxWxH)		mm	1800 x 1240 x 570
Max. Oil Level		mm	350
Table Size (LxW)		mm	1380 x 800
Travel Size	X	mm	1200
	Y	mm	600
	Spindle Travel(Z)	mm	400

Distance between Spindle Nose to Work Table	Min.	mm	500
Distance between Spindle Nose to Work Table	Max.	mm	950
Max. Table Load (Workpiece weight)		mm	4000
Max. Spindle Hold (Electrode weight)		kg	200
Oil Tank		L	900*2
Oil Tank Dimension (LxWxH)		mm	2000 x 2500 x 550
Control Method			AC / DC (Japan SANYO)
Rated Current		A	100
Machine Dimension (LxWxH)		mm	2200 x 3600 x 2920
Machine Weight		kg	5800
