CNC Sinker EDM (EDMN2510)

Get Latest Price

Payment Type:: L/C, T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	L/C, T/T

Product Description

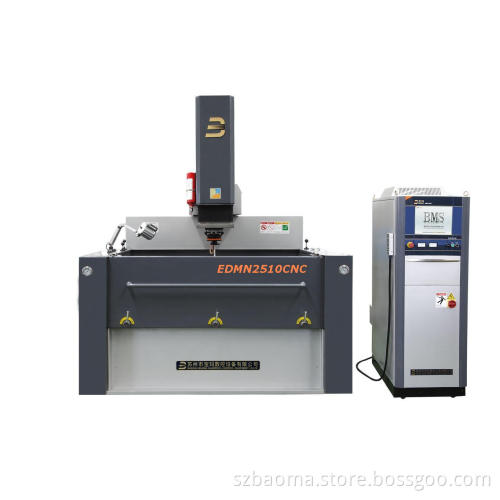

CNC Sinker EDM [ EDMN2510CNC ]
AC Servo: Japan YASKAWA or Panasonic
Linear guideway: Taiwan HIWIN
Denmark Grundfos Pump
Current: 90A
Smooth: Ra< =0.4um
Precision: < =0.005mm.

Parameters		Unit	EDMN2510CNC
Working Tank (LxWxH)		mm	3800 x 1800 x 650
Table Size (LxW)		mm	2700 x 1200
Travel Size	X	mm	Double Spindle	1750
	Y	mm	900
	Z	mm	600
Distance Between Spindle Nose to Work Table	MIN.	mm	650
	MAX.	mm	1250
Max. Table Load		kg	10000
Max. Spindle Hold		kg	450
Oil Top Level		mm	520
Oil Tank		L	5800
Control Method			AC
Rate Current		A	150
Dimension (LxWxH)		mm	5450 x 4388 x 3538
Machine Weight		kg	19500
