Product Description

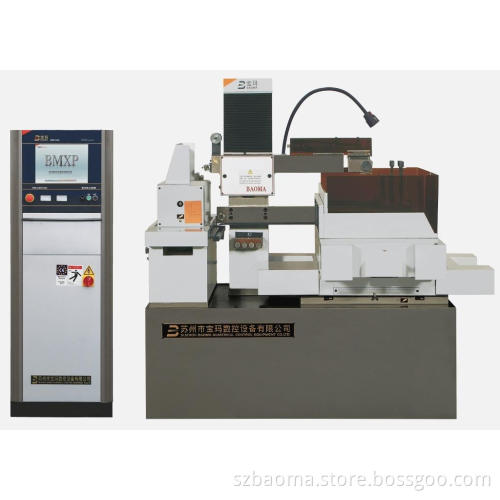

Servo Control Wire Cut EDM [ BM320 ]

1. YASKAWA Servo control system
2. High precision linear guideway
3. U. S. A Emerson Converter
4. Central lubrication system
5. BMXP Control system

6. AutoCAD Plug-in, read DXF
7. Remote jog handle
8. Reusable moly-wire, Lower cost
9. Multiplicity cutting function
10. Better Surface finishing
11. Intelligent Database

ITEM	A	B	C	D	E	F
Max. Cutting Thickness(mm)	300	500	300	500	300	500
Max. Cuttting Taper(< =100mm thick)	0	0	± 3°	± 3°	± 30°	± 30°
PARAMETERS	BM320A	BM302B	BM320C	BM320D	BM320E	BM320F
Table Travel (mm)		250 x 320
Table Size (mm)		380 x 525
Roughness	Once Cutting (um)	< = 2.5
	Multi-Cutting (um)	< =1.2
Precision	Octagon (mm)	< = 0.012	< = 0.012	< = 0.012	< = 0.012	< = 0.012	< = 0.012
	Taper (mm)			< = 0.04	< = 0.04	< = 0.1	< = 0.1
Screw and guide way		High Quality Ball Screw ; Steel Linear guideway
Load of Table (Kg)		300
Machine Weight (Kg)		1600

n Max. Cutting Speed	150 mm2/Min.
n Wire Speed	5 - 11 m/Min
n Max. working Current	6:00 AM
n Wire Diameter	Dia. 0.15-0.2mm
n Work Solution	BM2/BM4 Water Base Working solution
n Water Tank	56 L
n Rated Voltage	AC~, 3N, 220-415V, 50/60HZ
n Ratde Power	3 KVA
n Wire Guide Frame	Adjustable
n Controller	BMW-3000
