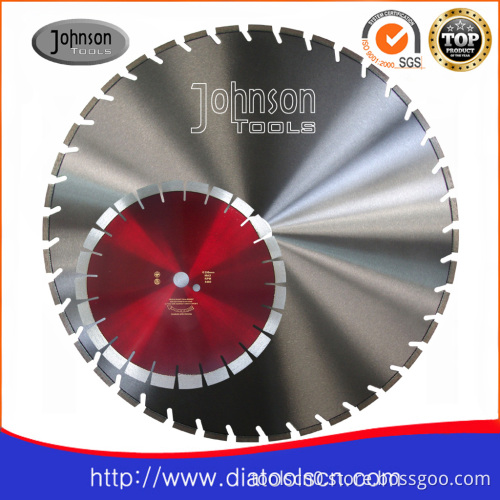

Laser Welded Saw Blade for Concrete

Key word: laser saw blade, saw blade, concrete cutting blade
Abstract: laser saw blade, widely used in construction industry, good cutting result and high efficiency, a real concrete cutting blade.


Features:
a. High quality diamond and materials ensure high sharpness and long cutting life.
b. Applied to cut concrete, cured concrete, reinforced concrete, prestressed concrete.
c. 100% laser welding strength of segment tested one by one via torque wrench.
d. Suitable to hand held saw or walk behind saw.
e. Suit to dry cutting.
f. Good balance assures safety and excellent cutting effect.
g. Different quality grades for selection.
h. Any specification as your request.

Specification:
Diameter: 105mm-500mm
Segment height: 7mm, 8mm, 10mm, 12mm.
Inner hole: 16/20mm, 22.23mm, 25.4mm, 50mm or as your request

Company instruction:
1) We're direct manufacturer and 100% export to worldwide (Thailand, India, Malaysia, Jordan, South Africa, Kenya, Morocco, Australia, UK, Spain, Brazil, etc)
2) We have around fourteen years producing experience.
3) Our main product: laser welded saw blade, sintered saw blade, diamond segments, diamond polishing and grinding products, cup wheel, core bits and electroplated diamond products etc.
4) Above 95% customers will be place a formal order after testing the samples.


Product Number	Diameter Inch	Segment number	Segment height MM	Segment thickness MM	Slot Type
LCO105	4"	8	7/8/10	2.2	Key / U
LCO115	4.5"	9	7/8/10	2.2	Key / U
LCO125	5"	10	7/8/10	2.2	Key / U
LCO150	6"	11	7/8/10	2.2	Key / U
LCO180	7"	12	7/8/10	2.4	Key / U
LCO200	8"	13	7/8/10	2.4	Key / U
LCO230	9"	16	7/8/10	2.6	Key / U
LCO250	10"	18	7/8/10	2.6	Key / U
LCO300	12"	20/21	8/10/12	3	Key / U
LCO350	14"	24	8/10/12	3.2	Key / U
LCO400	16"	28	8/10/12	3.4	Key / U
LCO450	18"	32	8/10/12	3.6	Key / U
LCO500	20"	36	8/10/12	3.8	Key / U
