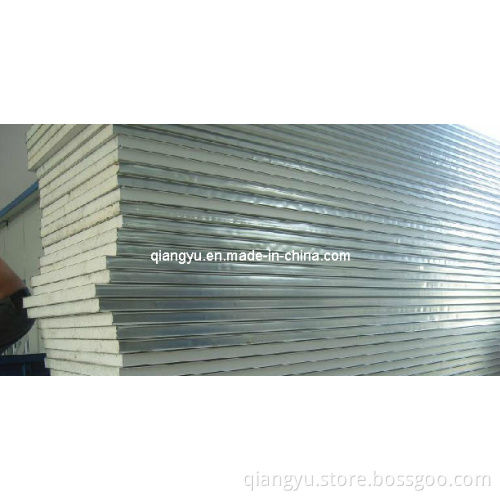

Stainless Steel PU Sandwich Panel for Cold Room (QYPU-3)
- Payment Type:
- L/C, T/T, Western Union, Money Gram
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Suzhou |
|---|---|
| Payment Type: | L/C, T/T, Western Union, Money Gram |
Product Description
Product Description
Advantage:
1. Fireproof
2. Low thermal conductivity
3. Sound-absorbing
4. High compressive strength
Information description:
The PU sandwich panel for wall material connecting technology and the best heat insulation performance, adopted environmental protective raw material and international top quality color coated sheet. Clean production, light weight and high strength characteristics, abundant colors, multivariant shapes of panel and fantastic veins, which made the products having many advantages such as excellent energy saving, environmental protective and aesthetic characteristics. Chunhui thermal insulation building material are widely applied in the following aspects, such as industrial workshops, large-scaled enterprises, shopping malls, airport, exhibition center, gymnasiums, hospitals, schools and electric power plant.
Specification and technical parameters of wall panel:
1. Thermal insulation materials: Pur/PIR
2. Density of core material: 35-50kg/cubic meters
3. Closed porosity: ≥ 96%
4. Temperature limit: -185° C-120° C
5. Coefficient of thermal
Conductivity: ≤ 0.021W/m. K
6. Bond strength: ≥ 0.09mpa
7. Compressive strength: ≥ 0.15mpa
8. Surface material: Color coated steel sheet thickness: 0.35-0.8mm coating: ( per or PVDF): 25um
9. Panel length10. Flame resistance: B3
1. Fireproof
2. Low thermal conductivity
3. Sound-absorbing
4. High compressive strength
Information description:
The PU sandwich panel for wall material connecting technology and the best heat insulation performance, adopted environmental protective raw material and international top quality color coated sheet. Clean production, light weight and high strength characteristics, abundant colors, multivariant shapes of panel and fantastic veins, which made the products having many advantages such as excellent energy saving, environmental protective and aesthetic characteristics. Chunhui thermal insulation building material are widely applied in the following aspects, such as industrial workshops, large-scaled enterprises, shopping malls, airport, exhibition center, gymnasiums, hospitals, schools and electric power plant.
Specification and technical parameters of wall panel:
1. Thermal insulation materials: Pur/PIR
2. Density of core material: 35-50kg/cubic meters
3. Closed porosity: ≥ 96%
4. Temperature limit: -185° C-120° C
5. Coefficient of thermal
Conductivity: ≤ 0.021W/m. K
6. Bond strength: ≥ 0.09mpa
7. Compressive strength: ≥ 0.15mpa
8. Surface material: Color coated steel sheet thickness: 0.35-0.8mm coating: ( per or PVDF): 25um
9. Panel length10. Flame resistance: B3
